PCM2704CDB - Texas Instruments

Description: Texas Instruments,PCM2704CDB,IC,DAC PCM2704CDB, Audio DAC Dual 16 bit-, 48ksps Serial (I2C), 28-Pin SSOP

Download PCM2704CDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

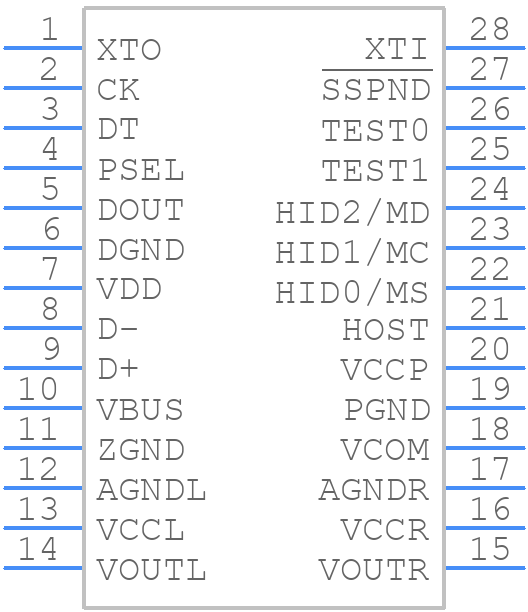

PCM2704CDB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2704CDB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
PCM2704CDB - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

PCM2704CDB Details

  • Manufacturer Part Number:

    PCM2704CDB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.815 V

  • Analog Output Voltage-Min:

    -1.815 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    46 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2704CDB Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the analog power supplies (VAA and VDA). This ensures that the internal voltage regulators are powered up correctly.
  • To configure the PCM2704CDB for master mode operation, set the MCLK pin to the desired clock frequency, and then set the BCK pin to the desired bit clock frequency. The WS pin should be set to the desired word select frequency. The PCM2704CDB will then generate the necessary clocks and control signals for the DAC.
  • The maximum allowed capacitance on the analog output pins is 100nF. Exceeding this value may affect the stability of the output stage and cause oscillations.
  • The PCM2704CDB outputs data in I2S format by default. To change the output format, use the FMT pin to select between I2S, DSP, or Right-Justified formats. The data format can also be changed through the SPI interface.
  • To minimize noise and ensure proper operation, it is recommended to keep the analog and digital power supplies separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a common mode filter on the analog output pins to reduce EMI.
