PCM2704DB - Texas Instruments

Description: DAC Dual Delta-Sigma 16-Bit 28-Pin SSOP PCM2704DB, Audio DAC Dual 16 bit-, 48ksps ±8%FSR Serial, 28-Pin SSOP

Download PCM2704DB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

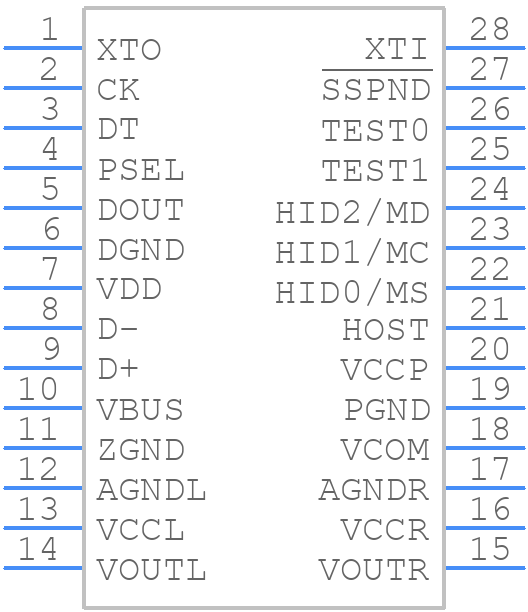

PCM2704DB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2704DB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
PCM2704DB - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

PCM2704DB Details

  • Manufacturer Part Number:

    PCM2704DB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.98 V

  • Analog Output Voltage-Min:

    1.65 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2704DB Frequently Asked Questions (FAQs)

  • The recommended clock source for the PCM2704DB is a crystal oscillator or a high-quality clock source with low jitter. The clock frequency should be 12.288 MHz or 24.576 MHz for 44.1 kHz or 48 kHz sampling rates, respectively.
  • To configure the PCM2704DB for master mode operation, set the MCLK pin as the clock output and connect it to the external clock source. Set the BCLK pin as the bit clock output and connect it to the external codec or DAC. Set the WCLK pin as the word clock output and connect it to the external codec or DAC. Finally, set the MODE pin to logic high to enable master mode.
  • The maximum data transfer rate of the PCM2704DB is 24 bits at 96 kHz, which translates to a data transfer rate of 2.304 Mbps.
  • The PCM2704DB uses a 5th-order Bessel filter for digital filtering. The filter coefficients are stored in the device's internal ROM and can be accessed through the I2C interface. The coefficients can be modified or updated using the I2C interface, but it is not recommended to modify the default coefficients without proper understanding of the filter design and its impact on the audio performance.
  • The power consumption of the PCM2704DB depends on the operating mode and the clock frequency. In typical operating conditions, the power consumption is around 20-30 mA at 3.3V supply voltage. However, the power consumption can be reduced to around 10-15 mA in low-power mode.
