PCM2705DBR - Texas Instruments

Description: Audio D/A Converter ICs Stereo DAC w/USB Ifc Hdphn & S/PDIF Otpt

Download PCM2705DBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

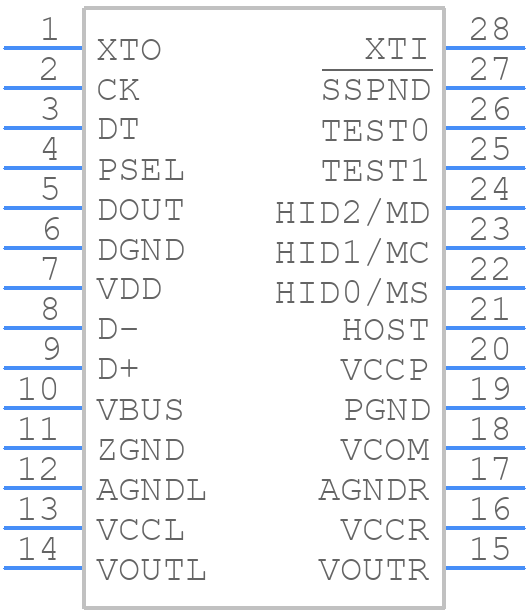

Symbol
PCM2705DBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2705DBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PCM2705DBR - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PCM2705DBR Details

  • Manufacturer Part Number:

    PCM2705DBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.98 V

  • Analog Output Voltage-Min:

    1.65 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2705DBR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • To configure the PCM2705DBR for master mode operation, set the MCLK pin as the clock source, and connect the BCLK and WCLK pins to the corresponding clock signals. Additionally, set the MS bit in the control register to '1' to enable master mode.
  • The maximum allowed capacitance on the VCC and VDD pins is 10uF. Exceeding this value may cause power-on reset issues or affect the device's performance.
  • The PCM2705DBR's digital output data format is in I2S (Inter-IC Sound) format. The device outputs 24-bit or 16-bit data, depending on the configuration, with the MSB (Most Significant Bit) first. The data is transmitted on the DOUT pin, and the clock signal is provided on the BCLK pin.
  • The XF pin is an external filter pin that allows the user to connect an external filter capacitor to improve the device's jitter tolerance. Connect a 10nF to 100nF capacitor between the XF pin and ground to improve the device's performance.
