PCM2900CDB - Texas Instruments

Description: Stereo USB1.1 CODEC with line-out (HID Interface)

Download PCM2900CDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

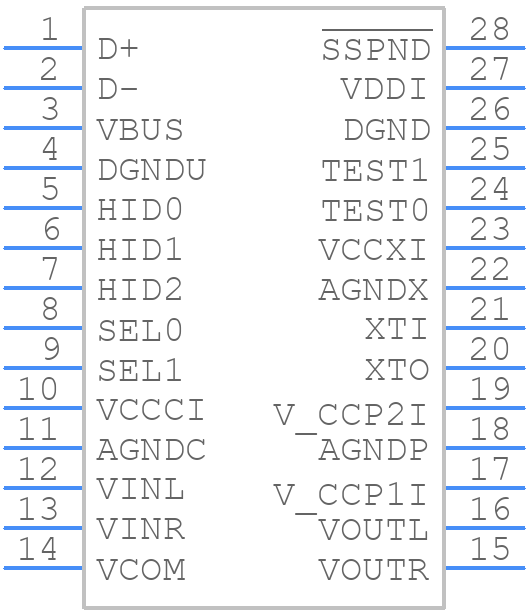

PCM2900CDB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2900CDB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A_A
click to zoom
3D Models
PCM2900CDB - Texas Instruments - 3D model - Small Outline Packages - DB0028A_A
click to zoom

PCM2900CDB Details

  • Manufacturer Part Number:

    PCM2900CDB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 3.1V TO 3.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    67 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2900CDB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This ensures proper device operation and prevents latch-up.
  • The analog input filter should be designed to reject noise and aliasing. A 2nd-order Butterworth filter with a cutoff frequency of 10 kHz to 20 kHz is recommended. The filter should also provide a gain of 0 dB to 6 dB to optimize the signal-to-noise ratio.
  • The maximum clock frequency for the PCM2900CDB is 50 MHz. However, the recommended clock frequency is 12.288 MHz to 24.576 MHz for optimal performance.
  • The PCM2900CDB outputs 24-bit data in I²S format. The data is transmitted in a serial format, with the most significant bit (MSB) first. The data is also clocked out on the falling edge of the BCK clock signal.
  • The recommended layout and routing for the PCM2900CDB involves separating the analog and digital sections, using a ground plane, and minimizing noise coupling between the analog and digital signals. The analog and digital power supplies should also be decoupled.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM2900CDB Overview

Use the download button to access the PCM2900CDB schematic symbol, PCB footprint, and 3D model.
