PCM2902CDBR - Texas Instruments

Description: Stereo Audio Codec with USB Interface, Single-Ended Analog and S/PDIF In/Out

Download PCM2902CDBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

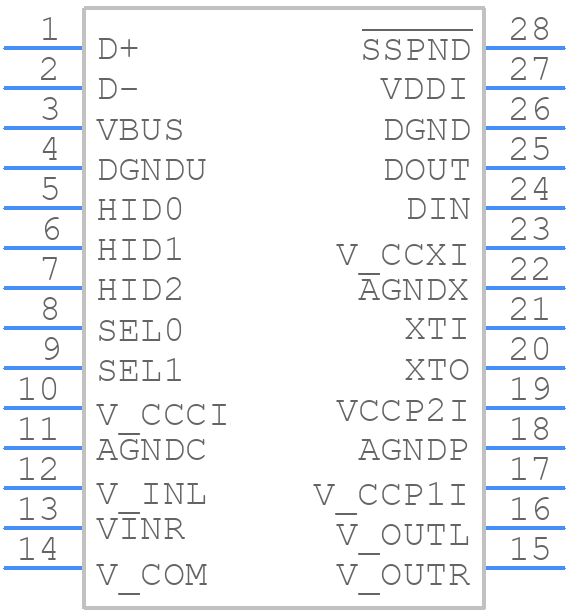

PCM2902CDBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2902CDBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PCM2902CDBR - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PCM2902CDBR Details

  • Manufacturer Part Number:

    PCM2902CDBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 3.1V TO 3.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    67 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2902CDBR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This ensures proper device operation and prevents latch-up.
  • The analog input filter should be designed to reject noise and aliasing. A 3rd-order Butterworth filter with a cutoff frequency of 10 kHz to 20 kHz is recommended. The filter should also be designed to match the impedance of the analog input.
  • The recommended clock frequency is 256 fs, where fs is the sampling frequency. This ensures proper device operation and minimizes jitter.
  • The digital output data is in 2's complement format. The MSB (most significant bit) is the sign bit, and the remaining bits represent the magnitude. The data should be processed accordingly to ensure correct interpretation.
  • The PCM2902CDBR has a thermal pad that should be connected to a thermal plane or a heat sink to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. The device should be operated within the recommended temperature range to ensure reliability.
