PCM2906CDB - Texas Instruments

Description: PCM2906CDB, Audio Encoder and Decoder IC Stereo Audio Stereo-channel 16bit- 48kHz USB 28-Pin SSOP

Download PCM2906CDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

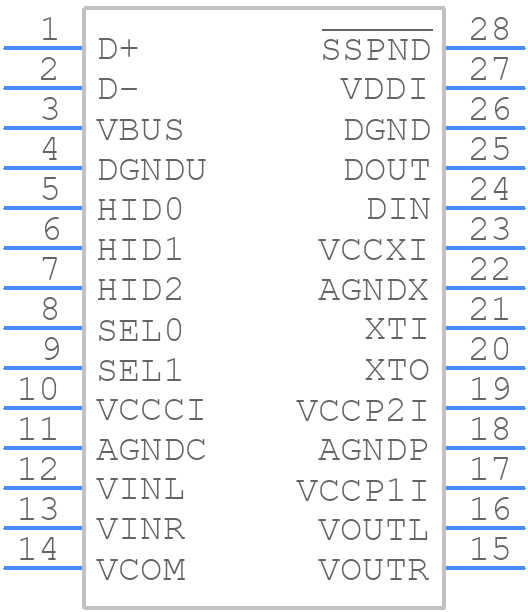

PCM2906CDB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2906CDB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
PCM2906CDB - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

PCM2906CDB Details

  • Manufacturer Part Number:

    PCM2906CDB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    67 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2906CDB Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This ensures proper device operation and prevents damage.
  • The analog input filter should be designed to reject noise and aliasing. A 3rd-order Butterworth filter with a cutoff frequency of 10 kHz to 20 kHz is recommended. The filter should also provide a gain of 0 dB to 6 dB to optimize the signal-to-noise ratio.
  • The maximum clock frequency for the PCM2906CDB is 50 MHz. However, the recommended clock frequency is 44.1 kHz to 48 kHz for audio applications.
  • The PCM2906CDB outputs 24-bit data in I²S format. The data is transmitted in a serial format, with the most significant bit (MSB) first. The data is also clocked out on the falling edge of the BCK clock signal.
  • The recommended layout and routing for the PCM2906CDB involves separating the analog and digital sections, using a ground plane, and minimizing noise coupling. The analog and digital power supplies should also be separated and decoupled.
