The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (AVCC and DVCC). This ensures that the internal voltage regulators are powered up correctly.
To optimize analog performance, ensure that the analog power supplies (AVCC and DVCC) are well-filtered and decoupled, and that the analog input signals are properly terminated and filtered. Additionally, use a low-noise, low-impedance power supply and minimize digital noise coupling into the analog circuitry.
The PCM3070 supports clock frequencies up to 50 MHz, but the maximum frequency may vary depending on the specific application and system design. It's recommended to consult the datasheet and application notes for specific guidance.
The PCM3070 can be configured for different audio formats (e.g., I2S, DSP, or TDM) by programming the device's registers and configuring the clock and data pins accordingly. Refer to the datasheet and application notes for specific configuration details.
To minimize noise and ensure optimal performance, it's recommended to follow a star-grounding scheme, keep analog and digital traces separate, and use a multi-layer PCB with a solid ground plane. Additionally, ensure that the power supply traces are wide and short, and that the decoupling capacitors are placed close to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM3070IRHBT Overview

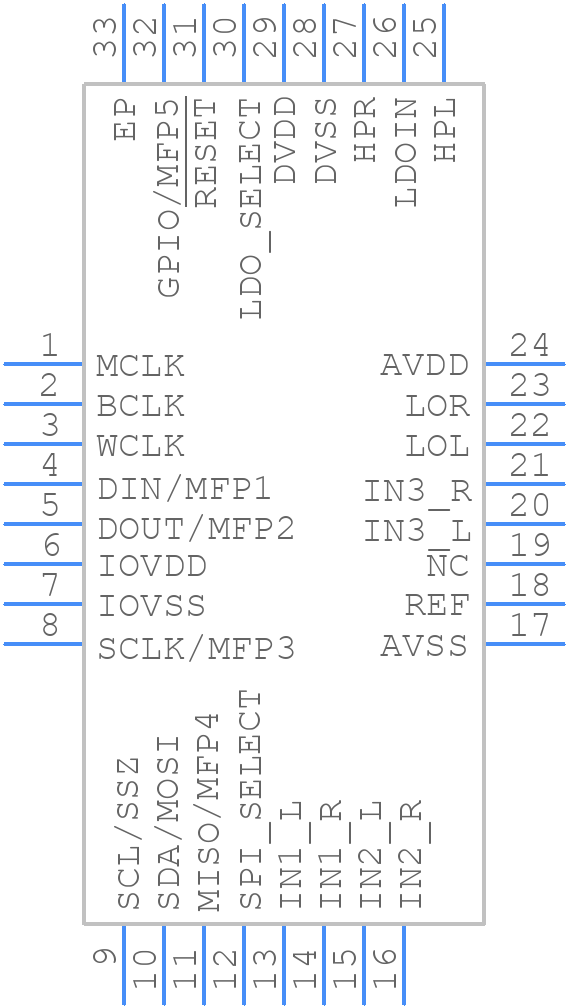

Use the download button to access the PCM3070IRHBT schematic symbol, PCB footprint, and 3D model.
