PCM3168APAP - Texas Instruments

Description: 24-bit Multi-channel Audio CODEC 6ch-in/8ch-out with 96/192kHz sampling rate

Download PCM3168APAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCM3168APAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

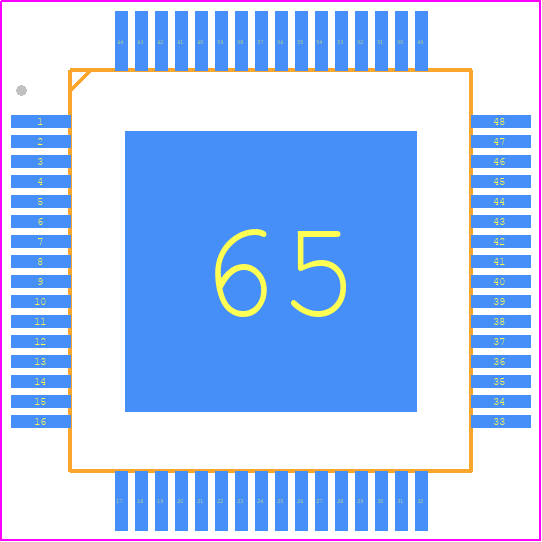

PCM3168APAP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PQFP-64[PAP]
click to zoom
3D Models
PCM3168APAP - Texas Instruments - 3D model - Quad Flat Packages - PQFP-64[PAP]
click to zoom

PCM3168APAP Details

  • Manufacturer Part Number:

    PCM3168APAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    210 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

PCM3168APAP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the digital inputs. This ensures that the analog and digital sections are powered up correctly.
  • To optimize the PCB layout, keep the analog and digital sections separate, use a solid ground plane, and minimize the length of the analog signal traces. Also, place the analog and digital power pins close to the device.
  • The maximum clock frequency supported by the PCM3168APAP is 50 MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
  • The PCM3168APAP can be configured for master or slave mode by setting the appropriate bits in the control register. In master mode, the device generates the clock signal, while in slave mode, it receives the clock signal from an external source.
  • The recommended termination scheme for the PCM3168APAP is to use a series resistor and capacitor (RC) network at the output of the device to match the impedance of the transmission line.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM3168APAP Overview

Use the download button to access the PCM3168APAP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM31, or try a keyword search, such as Other Consumer ICs
