PCM3168APAPRG4 - Texas Instruments

Description: Audio Codec 6ADC / 8DAC 24-Bit 64-Pin HTQFP EP T/R - Tape and Reel

Download PCM3168APAPRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCM3168APAPRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

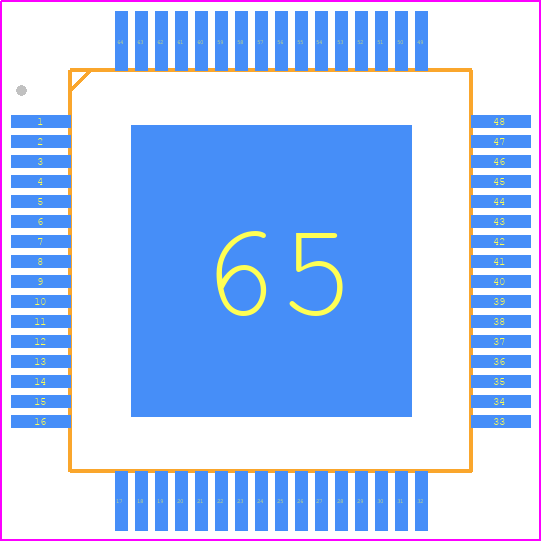

PCM3168APAPRG4 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PCM3168APAPRG4
click to zoom
3D Models
PCM3168APAPRG4 - Texas Instruments - 3D model - Quad Flat Packages - PCM3168APAPRG4
click to zoom

PCM3168APAPRG4 Details

  • Manufacturer Part Number:

    PCM3168APAPRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    210 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

PCM3168APAPRG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the clock signal. This ensures that the internal voltage regulators and analog circuits are properly initialized.
  • To minimize noise and EMI, it is recommended to keep the analog and digital signal traces separate, use a solid ground plane, and place decoupling capacitors close to the power pins. Additionally, use a shielded cable for the audio interface and keep the clock signal trace as short as possible.
  • The maximum clock frequency that can be used with the PCM3168 is 256 fs (fs = sample frequency). However, it is recommended to use a clock frequency that is at least 10 times the sample frequency to ensure proper operation.
  • The PCM3168 can be configured for master or slave mode by setting the M/S bit in the control register. In master mode, the PCM3168 generates the clock signal, while in slave mode, it receives the clock signal from an external source.
  • The recommended termination scheme for the PCM3168's digital outputs is to use a 50-ohm resistor in series with a 50-ohm load, followed by a 100-ohm resistor to ground. This ensures proper signal termination and minimizes reflections.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM3168APAPRG4 Overview

Use the download button to access the PCM3168APAPRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM31, or try a keyword search, such as Other Consumer ICs
