PCM3168ATPAPQ1 - Texas Instruments

PCM3168ATPAPQ1 Details

• Manufacturer Part Number:

  PCM3168ATPAPQ1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFP

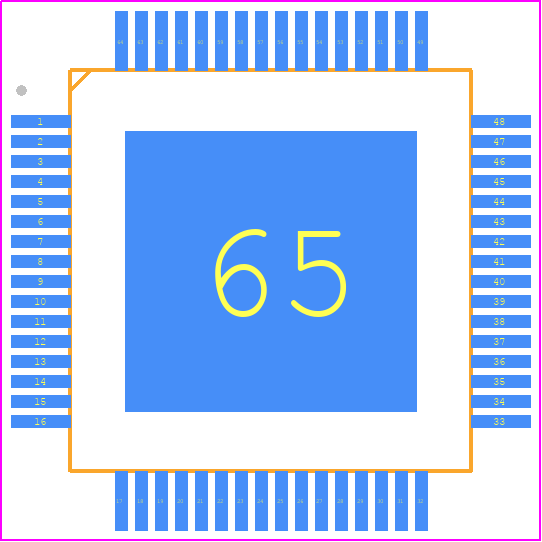

• Package Description:

  HTQFP-64

• Pin Count:

  64

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Filter:

  YES

• Input Code:

  TWOS COMPLEMENT

• Input Type:

  SINGLE-ENDED/DIFF

• JESD-30 Code:

  S-PQFP-G64

• Length:

  10 mm

• Linear Coding:

  24-BIT

• Moisture Sensitivity Level:

  3

• Number of Channels:

  8

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  VOLTAGE

• Output Code:

  TWOS COMPLEMENT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  QFP64,.47SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  130 mA

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Telecom IC Type:

  PCM CODEC

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm
