PCM3500E - Texas Instruments

Description: Low Voltage, Low Power, 16-Bit, Mono SoundPlus™ Voice/Modem Codec

Download PCM3500E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

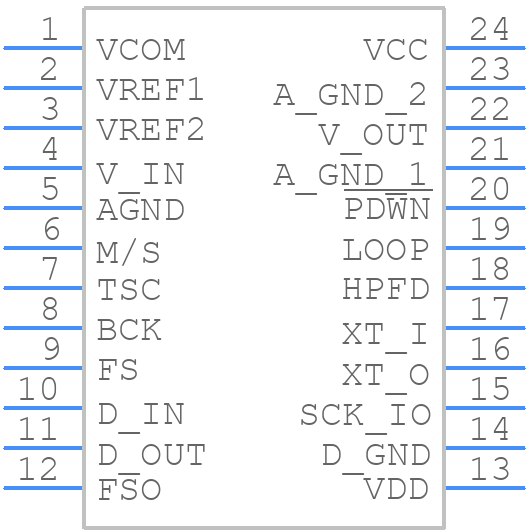

PCM3500E - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM3500E - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-24
click to zoom
3D Models
PCM3500E - Texas Instruments - 3D model - Small Outline Packages - SSOP-24
click to zoom

PCM3500E Details

  • Manufacturer Part Number:

    PCM3500E

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM3500E Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
  • To optimize the PCB layout, keep the analog and digital power planes separate, use a solid ground plane, and place decoupling capacitors close to the device. Also, ensure that the clock and data lines are routed away from noise sources.
  • The PCM3500E supports clock frequencies up to 128 kHz, but the maximum frequency may vary depending on the specific application and system requirements.
  • The PCM3500E can be configured for 24-bit or 32-bit audio by setting the appropriate bits in the control register. Refer to the datasheet for specific register settings and configuration details.
  • The recommended operating temperature range for the PCM3500E is -40°C to 85°C. However, the device can operate at temperatures up to 105°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM3500E Overview

Use the download button to access the PCM3500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM35, or try a keyword search, such as Other Consumer ICs
