PCM3500EG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - PCM3500EG4 - Audio Codec, Mono, 1, 1, -25 °C, 85 °C, 26 kSPS

Download PCM3500EG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

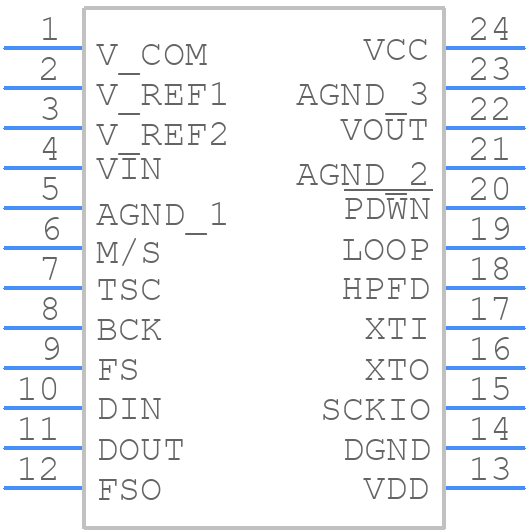

PCM3500EG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM3500EG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G24)
click to zoom
3D Models
PCM3500EG4 - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G24)
click to zoom

PCM3500EG4 Details

  • Manufacturer Part Number:

    PCM3500EG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    24

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM3500EG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization of the device.
  • To minimize noise and EMI, it is recommended to keep the analog and digital signal traces separate, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, use a shielded cable for the audio input and output signals.
  • The maximum clock frequency that can be used with the PCM3500EG4 is 50 MHz. However, it is recommended to use a clock frequency of 24.576 MHz or 22.5792 MHz for optimal performance.
  • The PCM3500EG4 can be configured for 24-bit or 32-bit audio data by setting the appropriate values for the DBF (Data Bit Format) and WLF (Word Length Format) registers. Refer to the datasheet for the specific register settings for each configuration.
  • The recommended termination scheme for the PCM3500EG4's digital output is to use a 50-ohm termination resistor to match the impedance of the transmission line. This ensures proper signal integrity and minimizes reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM3500EG4 Overview

Use the download button to access the PCM3500EG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM35, or try a keyword search, such as Other Consumer ICs
