PCM5100AQPWRQ1 - Texas Instruments

Description: Automotive Catalog 2VRMS DirectPath™, 100dB Audio Stereo DAC with 32-bit, 384kHz PCM Interface

Download PCM5100AQPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

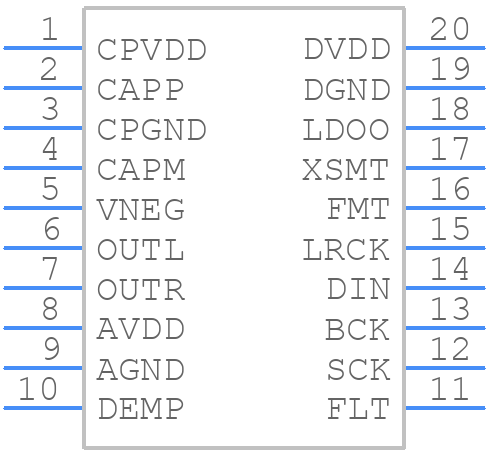

Symbol
PCM5100AQPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM5100AQPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G20) HEIGHT 1.2
click to zoom
3D Models
PCM5100AQPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G20) HEIGHT 1.2
click to zoom

PCM5100AQPWRQ1 Details

  • Manufacturer Part Number:

    PCM5100AQPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.384 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM5100AQPWRQ1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital power supplies (VDDIO and VDDA). This ensures that the internal voltage regulators are powered up correctly.
  • To optimize the PCB layout, keep the analog and digital power supplies separate, use a solid ground plane, and keep the analog and digital signal traces separate. Also, place the decoupling capacitors close to the device pins.
  • The recommended clock configuration is to use a single clock source for both the digital and analog domains. The clock frequency should be between 10 MHz and 50 MHz, and the clock signal should be connected to the XCLK pin.
  • The PCM5100AQPWRQ1 can be configured for different audio formats by setting the appropriate registers. For example, to configure for I2S format, set the I2S_EN bit in the Audio Interface Control Register (AICR).
  • The maximum output voltage swing of the PCM5100AQPWRQ1 is 2.1 Vrms, which is suitable for most audio applications.
