The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital signals. This ensures that the internal voltage regulators are powered up correctly.
To configure the PCM5102APW for master clock mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. Then, set the WS pin to the desired word select frequency. Finally, set the SDOUT pin to the desired data format (e.g. I2S, DSP, or TDM).
The maximum allowed capacitance on the VCC and VDD pins is 10uF. Exceeding this value may cause power-up issues or affect the device's performance.
The thermal shutdown feature is enabled by default. If the device temperature exceeds 150°C, the device will shut down. To handle this, ensure good thermal design and heat dissipation, and consider using a thermal monitoring circuit to detect and respond to thermal shutdown events.
To minimize noise and ensure proper operation, keep analog and digital signals separate, use a solid ground plane, and avoid routing digital signals under the device. Also, keep the power supply lines (VCC and VDD) short and wide, and use decoupling capacitors close to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM5102APW Overview

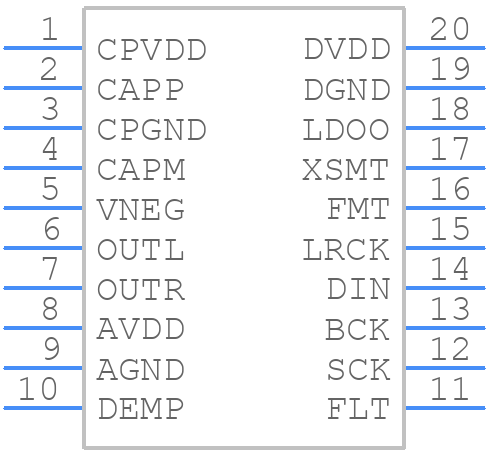

Use the download button to access the PCM5102APW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM51,
or try a keyword search, such as Digital to Analog Converters
