PCM5102AQPWRQ1 - Texas Instruments

Description: Automotive Catalog 2VRMS DirectPath™, 112dB Audio Stereo DAC with 32-bit, 384kHz PCM Interface

Download PCM5102AQPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

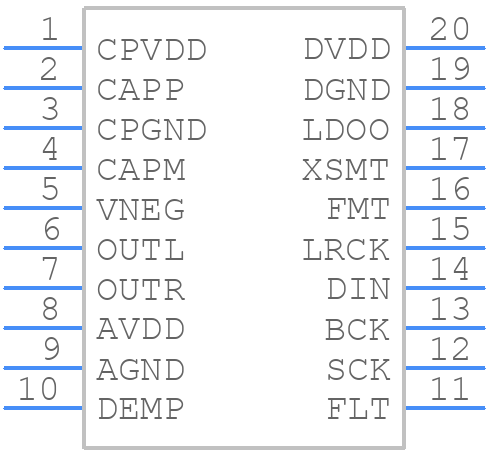

PCM5102AQPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM5102AQPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
PCM5102AQPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

PCM5102AQPWRQ1 Details

  • Manufacturer Part Number:

    PCM5102AQPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.384 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM5102AQPWRQ1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital power supply (VCCIO). This ensures that the internal voltage regulators are powered up correctly.
  • To optimize the PCB layout, keep the analog and digital power supply traces separate, use a solid ground plane, and place the decoupling capacitors close to the device. Also, ensure that the clock signal traces are short and shielded to minimize noise.
  • The maximum clock frequency supported by the PCM5102AQPWRQ1 is 216 kHz. However, the recommended clock frequency is 192 kHz for optimal performance.
  • To configure the PCM5102AQPWRQ1 for Master Clock Mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. Also, ensure that the LRCK pin is set to the desired left-right clock frequency.
  • The recommended operating temperature range for the PCM5102AQPWRQ1 is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM5102AQPWRQ1 Overview

Use the download button to access the PCM5102AQPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM51, or try a keyword search, such as Digital to Analog Converters
