PCM5121PWR - Texas Instruments

Description: 2V RMS DIRECTPATH 106dB Audio Stereo DAC with PCM interface and fixed Audio processing

Download PCM5121PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

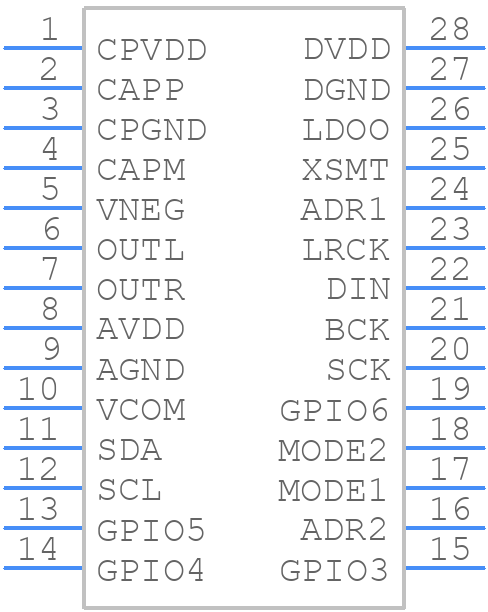

PCM5121PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM5121PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP28
click to zoom
3D Models
PCM5121PWR - Texas Instruments - 3D model - Small Outline Packages - TSSOP28
click to zoom

PCM5121PWR Details

  • Manufacturer Part Number:

    PCM5121PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    DAC 32BIT

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.384 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM5121PWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To configure the PCM5121PWR for master clock mode, set the MCLK pin as an output by setting the MCLKOE bit in the Clock Control Register (CCR). Then, set the desired clock frequency using the MCLKDIV and MCLKFRQ bits in the CCR.
  • The maximum allowed capacitance for the analog output filters is 10uF. Exceeding this value may affect the stability of the output stage.
  • To optimize the PCM5121PWR for low power consumption, use the Power Management Register (PMR) to disable unused blocks, reduce the clock frequency, and adjust the voltage regulators. Additionally, use the Dynamic Voltage and Frequency Scaling (DVFS) feature to optimize power consumption based on the system's requirements.
  • The recommended layout and routing for the PCM5121PWR's analog and digital signals is to separate the analog and digital signals, use a star-ground configuration, and minimize the length of the analog signal traces. Additionally, use a solid ground plane and avoid crossing analog and digital signal traces.
