PCM5142PW - Texas Instruments

Description: 2V RMS DIRECTPATH 112dB Audio Stereo DAC with PCM interface and fully programmable miniDSP

Download PCM5142PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

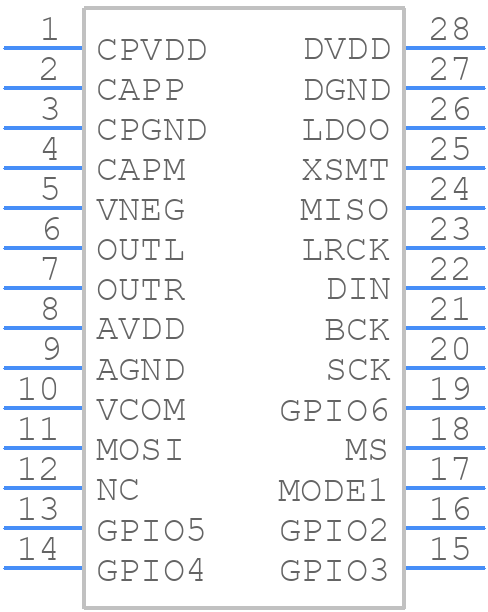

PCM5142PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM5142PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
PCM5142PW - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

PCM5142PW Details

  • Manufacturer Part Number:

    PCM5142PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    DAC 32BIT

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.384 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM5142PW Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To optimize the PCB layout, keep the analog and digital grounds separate, use a solid ground plane, and place the device close to the analog power supply. Also, ensure that the clock signal traces are short and shielded to minimize jitter.
  • The maximum clock frequency that can be used with the PCM5142PW is 256 fs (frames per second), which corresponds to a clock frequency of 49.152 MHz for a 24-bit, 192 kHz audio signal.
  • To configure the PCM5142PW for Master Clock mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. Then, set the WS pin to the desired word select frequency, and configure the device for Master mode using the SPI interface.
  • The recommended termination for the digital output pins of the PCM5142PW is a 50-ohm resistor in series with a 10 pF capacitor to ground. This helps to reduce electromagnetic interference (EMI) and improve signal integrity.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM5142PW Overview

Use the download button to access the PCM5142PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM51, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
