Part Image

PCM5252RHBT - Texas Instruments

Description: 114dB 32-Bit Stereo Differential-Output DAC With miniDSP and Smart Amp Capability

Download PCM5252RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

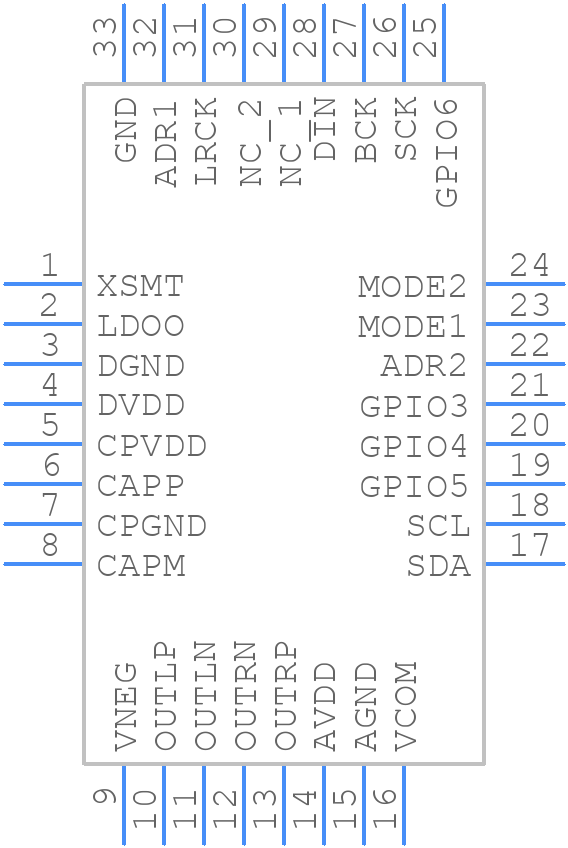

PCM5252RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM5252RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB32
click to zoom
3D Models
PCM5252RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB32
click to zoom

PCM5252RHBT Details

  • Manufacturer Part Number:

    PCM5252RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2016-11-22

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.384 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

PCM5252RHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the PCM5252RHBT evaluation module (EVM) user's guide, which can be found on the TI website. It's essential to follow this guide to ensure proper operation and minimize noise and interference.
  • The PCM5252RHBT requires a well-regulated power supply with low noise and ripple. TI recommends using a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) and a low equivalent series resistance (ESR) capacitor. Additionally, it's essential to decouple the power supply lines with capacitors and use a star-grounding topology to minimize noise and interference.
  • The PCM5252RHBT can support clock frequencies up to 192 kHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's recommended to use a high-quality clock source with low jitter and noise to ensure proper operation.
  • The PCM5252RHBT can be configured for master or slave mode by setting the appropriate pins and registers. In master mode, the device generates the clock signal, while in slave mode, it receives the clock signal from an external source. The configuration depends on the specific application and the requirements of the system.
  • The latency of the PCM5252RHBT depends on the specific configuration and the clock frequency. Typically, the latency is around 1-2 clock cycles, but it can be affected by the system design and the quality of the clock signal. It's essential to consider the latency in the system design to ensure proper synchronization and data transfer.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM5252RHBT Overview

Use the download button to access the PCM5252RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM52, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
