Part Image

PCMD3140IRTER - Texas Instruments

Description: Analog to Digital Converters - ADC Four-channel PDM-input to TDM- or I S-output converter

Download PCMD3140IRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

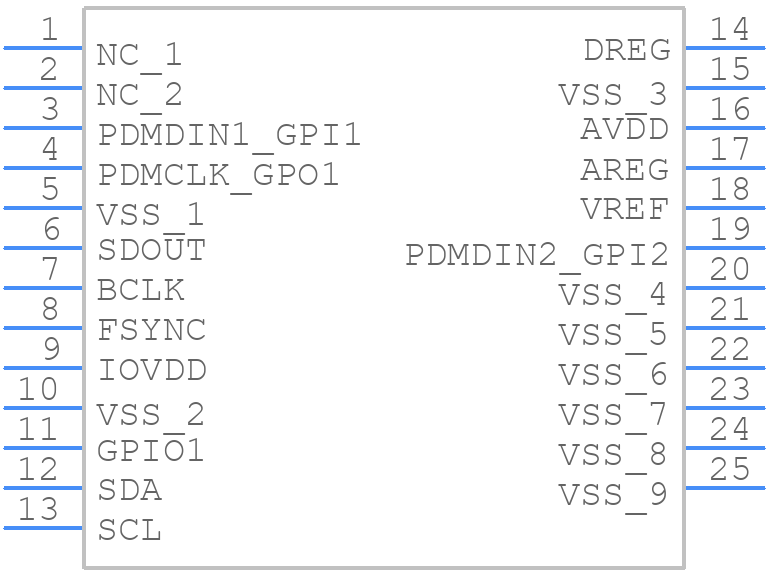

PCMD3140IRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCMD3140IRTER - Texas Instruments PCB footprint - Other - Other - PCMD3140IRTER-3
click to zoom
3D Models
PCMD3140IRTER - Texas Instruments - 3D model - Other - PCMD3140IRTER-3
click to zoom

PCMD3140IRTER Details

  • Manufacturer Part Number:

    PCMD3140IRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.11SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PCMD3140IRTER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the PCMD3140IRTER evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The PCMD3140IRTER has multiple power modes, including low-power mode, shutdown mode, and active mode. Configuration is done through the I2C interface, and the specific register settings can be found in the datasheet and application notes.
  • The PCMD3140IRTER is rated for operation from -40°C to 125°C, but it's essential to consider the thermal management and heat dissipation in the system design to ensure reliable operation within this range.
  • The PCMD3140IRTER has specific power sequencing requirements to ensure proper operation. It's essential to follow the recommended power-up and power-down sequences outlined in the datasheet and application notes to avoid damage or malfunction.
  • The PCMD3140IRTER has built-in EMI and ESD protection features, but it's still important to follow proper PCB design and layout guidelines, as well as implement additional protection measures if necessary, to ensure the device operates reliably in noisy environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMD3140IRTER Overview

Use the download button to access the PCMD3140IRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMD3, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
