Part Image

PCMF2HDMI14SZ - Nexperia

Description: PCMFXHDMI14S series - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF2HDMI14SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

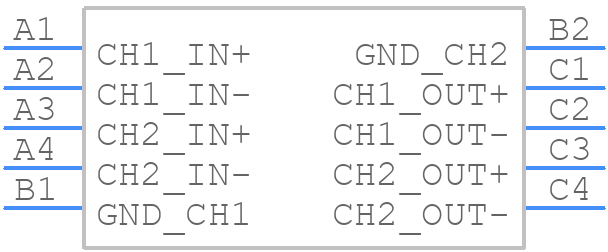

Symbol
PCMF2HDMI14SZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF2HDMI14SZ - Nexperia PCB footprint - Other - Other - WLCSP10_4-2-4
click to zoom
3D Models
PCMF2HDMI14SZ - Nexperia - 3D model - Other - WLCSP10_4-2-4
click to zoom

PCMF2HDMI14SZ Details

  • Manufacturer Part Number:

    PCMF2HDMI14SZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    WLCSP10_4-2-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7.39

  • Capacitance:

    0.25 µF

  • DC Resistance-Max:

    3 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Insertion Loss-Max:

    -31.5 dB

  • Length:

    1.62 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5 V

  • Screening Level:

    IEC 61000-4-2,4-5; IEC-60134

  • Width:

    1.22 mm

PCMF2HDMI14SZ Frequently Asked Questions (FAQs)

  • Nexperia provides a recommended PCB layout in the application note AN11559, which includes guidelines for signal routing, grounding, and component placement to minimize signal degradation and ensure reliable operation.
  • To prevent signal integrity issues, it's essential to follow high-speed design guidelines, such as using differential pairs, controlling impedance, and minimizing signal reflections. Additionally, using a signal integrity analysis tool can help identify potential issues before prototyping.
  • The maximum cable length supported by the PCMF2HDMI14SZ depends on the specific HDMI version and the quality of the cable. Generally, HDMI 2.0 supports cable lengths up to 3 meters, while HDMI 1.4 supports up to 10 meters. However, it's recommended to consult the HDMI specification and perform signal integrity analysis to determine the maximum cable length for a specific application.
  • The PCMF2HDMI14SZ can be configured for different HDMI modes by setting the appropriate registers and pins. Refer to the datasheet and application notes for specific configuration details, and consult the HDMI specification for mode-specific requirements.
  • The PCMF2HDMI14SZ has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink, thermal vias, and thermal pads. Consult the datasheet and application notes for specific thermal management guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF2HDMI14SZ Overview

Use the download button to access the PCMF2HDMI14SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF2, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
