The maximum cable length supported is 3 meters, but it's recommended to use cables shorter than 2 meters to ensure reliable operation.
To ensure signal integrity, use a shielded cable, keep the signal traces as short as possible, and use a common mode filter to reduce electromagnetic interference (EMI).
Keep the signal traces as short and direct as possible, use a solid ground plane, and place the device close to the connector to minimize signal degradation.
Yes, the PCMF2USB3S/CZ is backward compatible with USB 2.0 devices, but it will operate at the slower USB 2.0 speed.
Use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device in conjunction with the PCMF2USB3S/CZ to protect against electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCMF2USB3S/CZ Overview

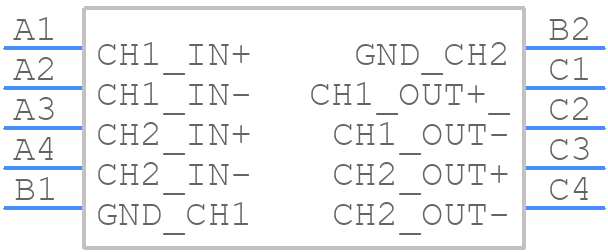

Use the download button to access the PCMF2USB3S/CZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF2,
or try a keyword search, such as Data Line Filters
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
