PCS-XE68SFD+ - Honda Connectors

Description: Conn Wire to Board RCP 68 POS 1.27mm Solder ST Thru-Hole

Download PCS-XE68SFD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCS-XE68SFD+ - Honda Connectors - PCB symbol
click to zoom
PCB Footprints

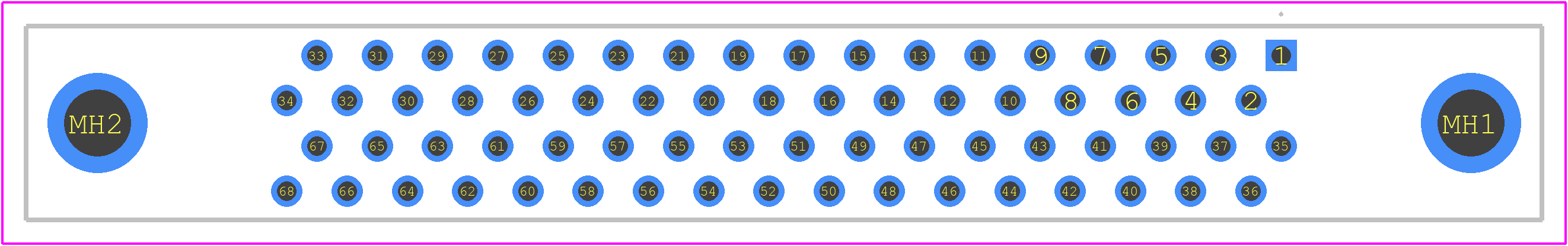

PCS-XE68SFD+ - Honda Connectors PCB footprint - Other - Other - PCS-XE68SFD+-2
click to zoom
3D Models
PCS-XE68SFD+ - Honda Connectors - 3D model - Other - PCS-XE68SFD+-2
click to zoom

PCS-XE68SFD+ Details

  • Manufacturer Part Number:

    PCS-XE68SFD+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Honda Tsushin Kogyo Co Ltd

  • YTEOL:

    7.5

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    GOLD (8)

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    68

PCS-XE68SFD+ Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the PCS-XE68SFD+ is -40°C to 125°C, as specified by Honda Tsushin Kogyo Co Ltd.
  • Yes, the PCS-XE68SFD+ is designed to withstand high-vibration environments, with a vibration resistance of 10G (10-2000Hz) according to the manufacturer's specifications.
  • Yes, the PCS-XE68SFD+ is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
  • The typical operating current of the PCS-XE68SFD+ is around 10mA, although this may vary depending on the specific application and operating conditions.
  • Yes, the PCS-XE68SFD+ is designed to operate in humid environments, with a moisture sensitivity level (MSL) of 3, which means it can withstand humidity levels up to 60% RH at 30°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCS-XE68SFD+ Overview

Use the download button to access the PCS-XE68SFD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCS-X, or try a keyword search, such as Telecom and Datacom Connectors
