- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PCV-1-473-10L
- Part Number PCV-1-473-10L
- Manufacturer COILCRAFT
- Pin Count 2
- Part Category Inductor
- Package Category Other

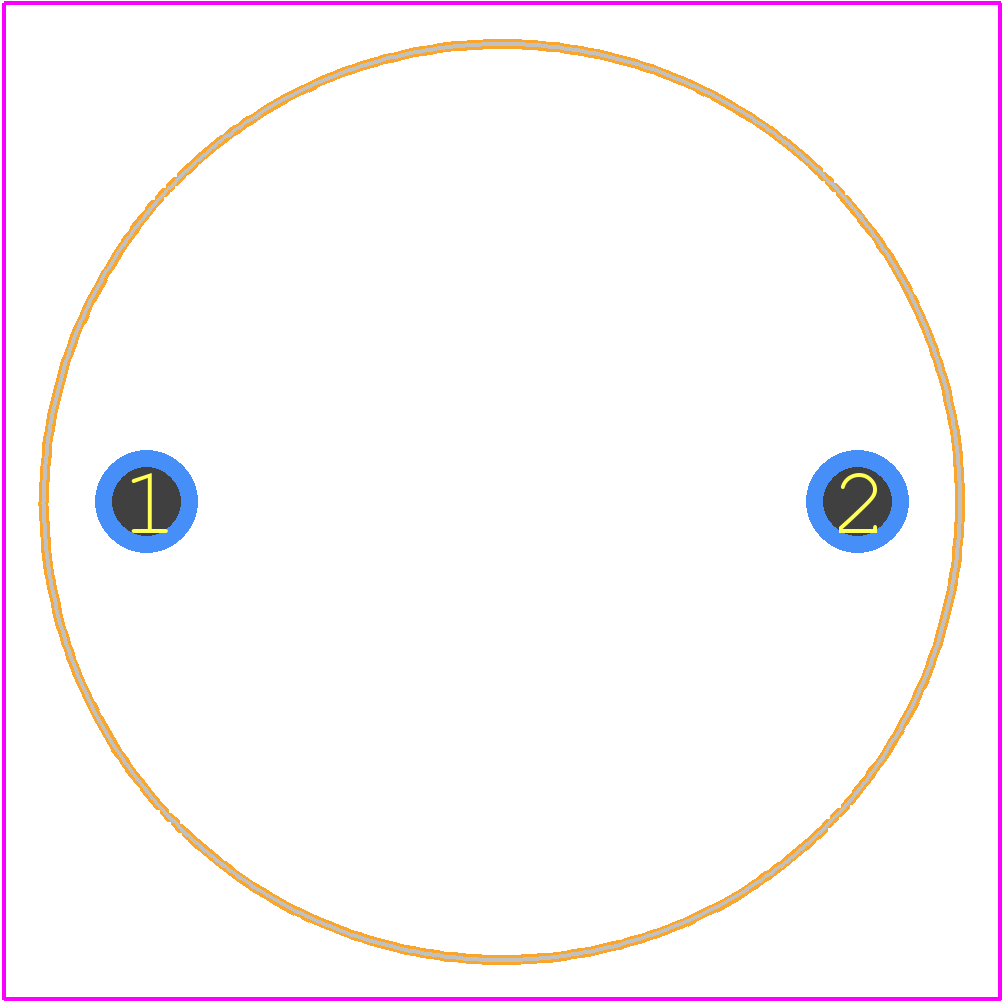

- Footprint Name Other - PCV-1-473-10L-1
- Released Date Nov 1, 2020
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
PCV-1-473-10L Details
-
Manufacturer Part Number:
PCV-1-473-10L
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
RADIAL LEADED
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6.6
-
Construction:
Open Core
-
Core Material:
FERRITE
PCV-1-473-10L Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended land pattern for the PCV-1-473-10L in their documentation, which includes a suggested pad layout and dimensions for optimal assembly and performance.
-
While the PCV-1-473-10L is rated for operation up to 125°C, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure the inductor's performance and reliability in high-temperature applications.
-
The PCV-1-473-10L has a shielded construction, which helps reduce electromagnetic interference (EMI). To maintain the shielding effectiveness, ensure that the inductor is properly oriented and placed on the PCB, and avoid violating the keep-out areas around the component.
-
While the datasheet provides a maximum DC current rating, the inductor's saturation current is typically higher. For the PCV-1-473-10L, the saturation current is around 12-15 A, depending on the operating frequency and temperature. However, it's recommended to consult with Coilcraft's application engineers for specific guidance on saturation current and inductor selection.
-
The PCV-1-473-10L is designed for high-frequency applications, with a recommended operating frequency range of up to 1 MHz. However, it's essential to consider the inductor's self-resonant frequency (SRF) and the effects of skin depth and proximity effects at high frequencies.
Trust Checks
System Verified
PCV-1-473-10L Overview
Use the download button to access the PCV-1-473-10L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCV-1,
or try a keyword search, such as Fixed Inductors
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
