PCV-2-105-02L - COILCRAFT

Description: COILCRAFT - PCV-2-105-02L - INDUCTOR, 1MH, 2.3A, 10%, POWER

Download PCV-2-105-02L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCV-2-105-02L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

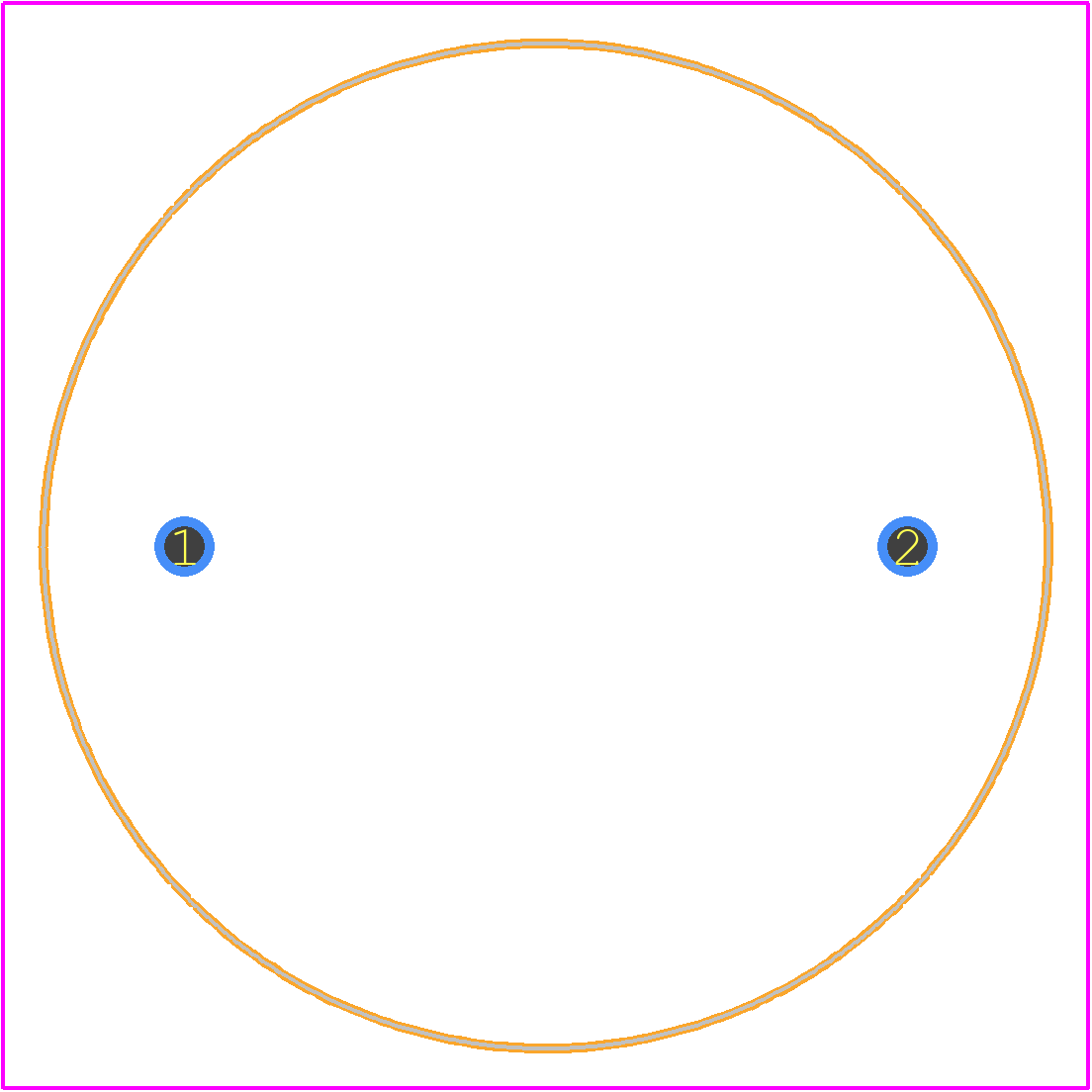

PCV-2-105-02L - COILCRAFT PCB footprint - Other - Other - PCV-2-105-02L-2
click to zoom
3D Models
PCV-2-105-02L - COILCRAFT - 3D model - Other - PCV-2-105-02L-2
click to zoom

PCV-2-105-02L Details

  • Manufacturer Part Number:

    PCV-2-105-02L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Construction:

    Open Core

  • Core Material:

    FERRITE

  • DC Resistance:

    0.37 Ω

  • Inductance-Nom (L):

    1000 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Diameter:

    0.71 mm

  • Lead Length:

    7.1 mm

  • Lead Spacing:

    18.29 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    25.4 mm

  • Package Length:

    21.08 mm

  • Package Style:

    Radial

  • Packing Method:

    Tray

  • Rated Current-Max:

    2.3 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01575 MHz

  • Tolerance:

    10%

PCV-2-105-02L Frequently Asked Questions (FAQs)

  • Coilcraft recommends a land pattern with a pad size of 1.3 mm x 1.3 mm and a spacing of 0.5 mm between pads. The recommended land pattern is available on Coilcraft's website.
  • Yes, PCV-2-105-02L is compatible with lead-free soldering. Coilcraft's inductors are RoHS-compliant and can withstand the higher temperatures required for lead-free soldering.
  • The maximum operating temperature for PCV-2-105-02L is 125°C. However, the inductor's performance may degrade at higher temperatures, and the core may saturate above 100°C.
  • Yes, PCV-2-105-02L is designed for high-frequency applications up to 1 GHz. However, the inductor's performance may vary depending on the frequency, and additional testing may be required to ensure the inductor meets the specific application requirements.
  • PCV-2-105-02L is designed for moderate current applications up to 2.5 A. For higher current applications, Coilcraft recommends using a different inductor with a higher current rating, such as the PCV-2-105-03L.
