PCV-2-274-05L - COILCRAFT

Description: Power Inductors - Leaded 270uH UnShld 5.2A , 80mOhms , 15.75kHz , -40C +85C

Download PCV-2-274-05L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCV-2-274-05L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

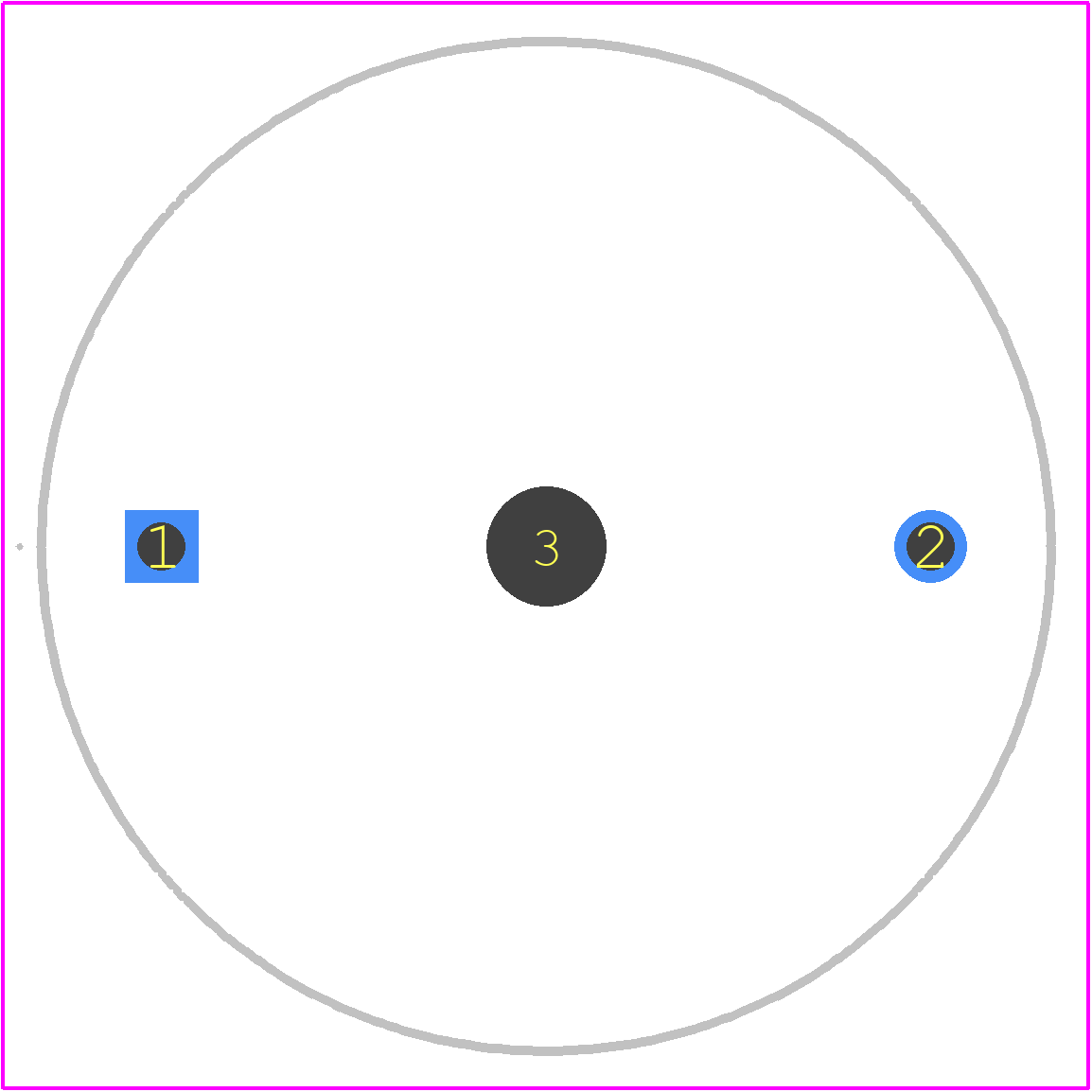

PCV-2-274-05L - COILCRAFT PCB footprint - Other - Other - 26.67mm x 25.40mm
click to zoom
3D Models
PCV-2-274-05L - COILCRAFT - 3D model - Other - 26.67mm x 25.40mm
click to zoom

PCV-2-274-05L Details

  • Manufacturer Part Number:

    PCV-2-274-05L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Construction:

    Open Core

  • Core Material:

    FERRITE

  • DC Resistance:

    0.08 Ω

  • Inductance-Nom (L):

    270 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Diameter:

    1.07 mm

  • Lead Length:

    7.1 mm

  • Lead Spacing:

    20.32 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    26.67 mm

  • Package Length:

    25.4 mm

  • Package Style:

    Radial

  • Packing Method:

    Tray

  • Rated Current-Max:

    5.2 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01575 MHz

  • Tolerance:

    10%
