PD-40 footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

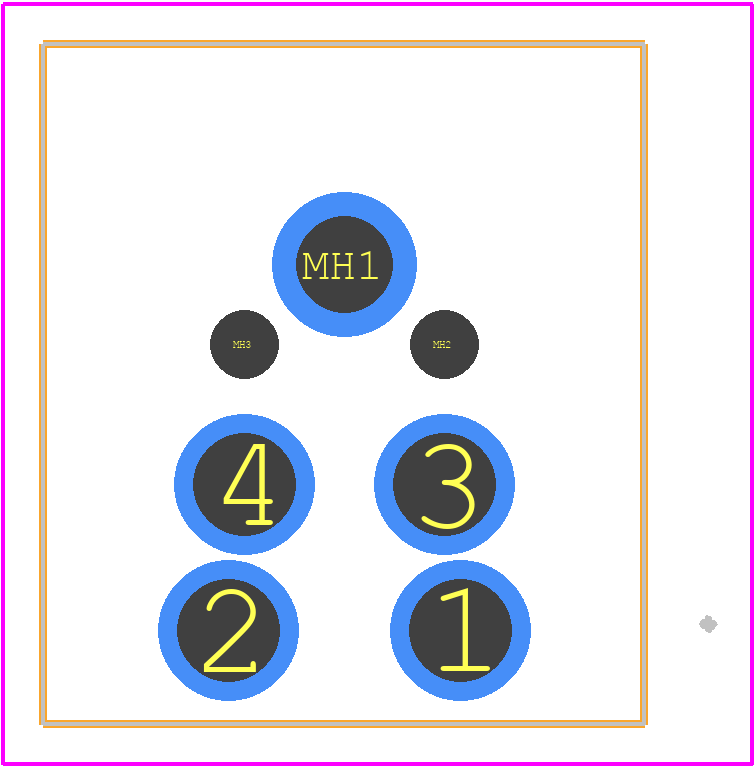

PCB Footprints

PD-40 - Same Sky PCB footprint - Other - Other - PD-40-3

click to zoom

3D Models

PD-40 - Same Sky - 3D model - Other - PD-40-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PD-40
Part Number PD-40
Manufacturer Same Sky
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - PD-40-3
Released Date Aug 4, 2020
Last Modified Date May 20, 2026 3:53 PM UTC
Pinout / Pin List Click Here (Member Only)

PD-40 Details

Manufacturer Part Number:
PD-40
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Same Sky
YTEOL:
7.5
Board Mounting Option:
HOLE 0.051-0.094
Body Breadth:
0.551 inch
Body Depth:
0.669 inch
Body Length:
0.591 inch
Body/Shell Style:
JACK
Connector Type:
DIN CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
BRASS
Contact Resistance:
30 mΩ
Contact Style:
RND PIN-SKT
DIN Conformance:
YES
Dielectric Withstanding Voltage:
250VAC V
Durability:
1000 Cycles
EMI Shielded:
NO
IEC Conformance:
NO
Insulation Resistance:
50000000 Ω
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
JESD-609 Code:
e3
MIL Conformance:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED
Rated Current (Signal):
7.5 A
Reference Standard:
UL
Terminal Length:
0.126 inch
Termination Type:
SOLDER
Total Number of Contacts:
4

PD-40 Frequently Asked Questions (FAQs)

A good PCB layout for the PD-40 involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper decoupling, place a 10uF ceramic capacitor between the VIN pin and the GND pin, and a 1uF ceramic capacitor between the VOUT pin and the GND pin. Additionally, use a 10nF ceramic capacitor between the VIN pin and the EN pin.
The PD-40 can handle input voltages up to 28V, but it's recommended to operate within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
The PD-40 is rated for operation up to 85°C, but it's recommended to derate the output current at higher temperatures. For example, at 85°C, the maximum output current is 1.5A. Consult the datasheet for more information on temperature derating.
The output voltage of the PD-40 can be adjusted by using a resistor divider network between the FB pin and the GND pin. The output voltage is determined by the ratio of the resistors in the divider network.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PD-40 Overview

Use the download button to access the PD-40 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as DIN Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
