PD4859J5050S2HF - ANAREN

Description: Signal Conditioning 4.8-5.9GHz 50 Ohm IL=1.0dB

Download PD4859J5050S2HF Model

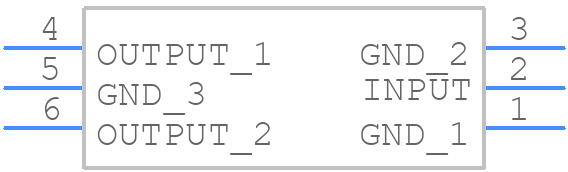

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PD4859J5050S2HF - ANAREN PCB footprint - Other - Other - PD4859J5050S2HF-1
click to zoom
3D Models
PD4859J5050S2HF - ANAREN  - 3D model - Other - PD4859J5050S2HF-1
click to zoom

PD4859J5050S2HF Details

  • Manufacturer Part Number:

    PD4859J5050S2HF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SUB-MINIATURE, CERAMIC PACKAGE-6

  • Manufacturer:

    Anaren Microwave

  • Additional Feature:

    ISOLATION-MIN (DB):14

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    1 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    5900 MHz

  • Operating Frequency-Min:

    4800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    SPLITTER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

PD4859J5050S2HF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the PD4859J5050S2HF can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and minimization of parasitic effects.
  • The PD4859J5050S2HF has a thermal resistance of 25°C/W. To ensure reliable operation, it is recommended to use a heat sink or thermal pad to maintain a junction temperature below 125°C. A thermal interface material with a thermal conductivity of at least 1 W/m-K is recommended.
  • The PD4859J5050S2HF is designed to operate with a VSWR of up to 3:1. Exceeding this value may result in reduced performance, overheating, or even device failure.
  • Yes, the PD4859J5050S2HF can be used in a push-pull or balanced configuration to achieve higher power output and improved linearity. However, this requires careful design and layout consideration to ensure optimal performance and minimize unwanted coupling.
  • The recommended input and output matching network for the PD4859J5050S2HF can be found in the Anaren Microwave application note AN-115, which provides a detailed design guide for optimal impedance matching and power transfer.
