PD69100C-GGGG - Microchip

Description: PoE Controller Unit 36-Pin VQFPN - Trays

Download PD69100C-GGGG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

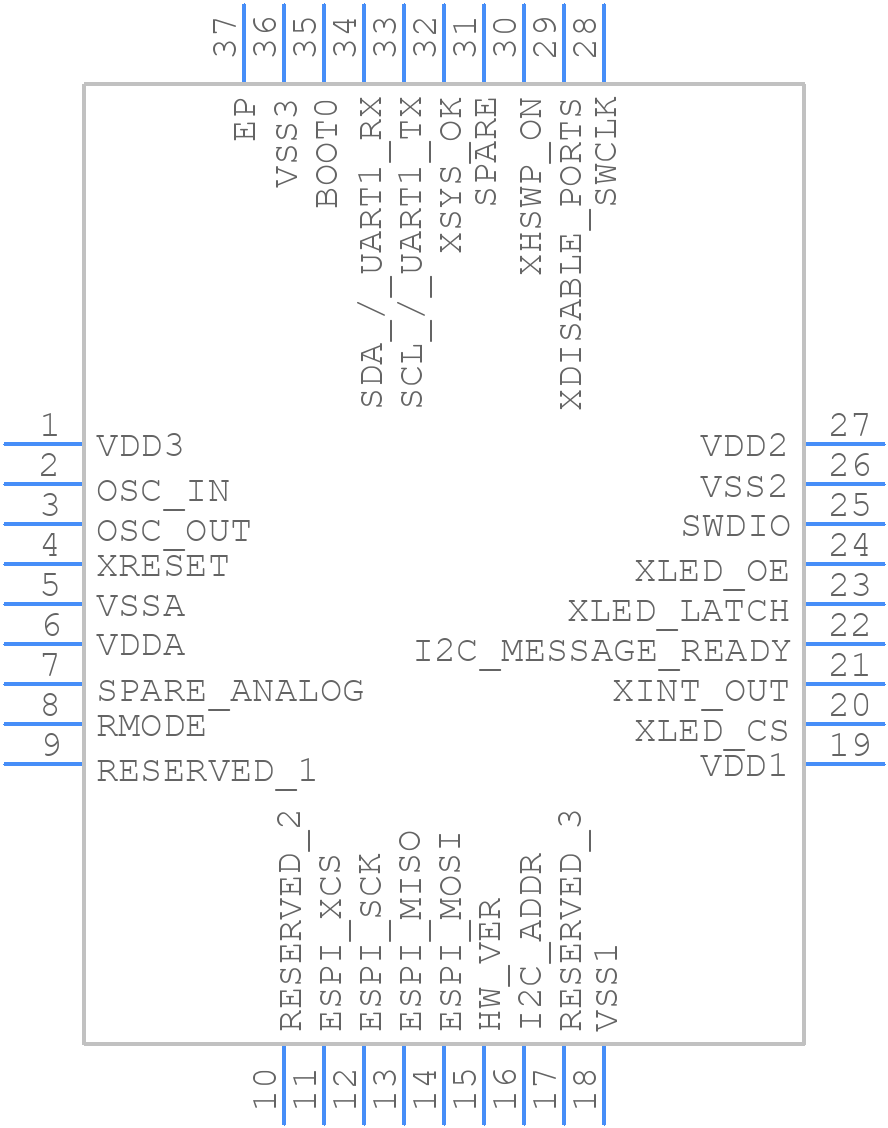

PD69100C-GGGG - Microchip - PCB symbol
click to zoom
PCB Footprints
PD69100C-GGGG - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PD69100C-GGGG
click to zoom
3D Models
PD69100C-GGGG - Microchip - 3D model - Quad Flat No-Lead - PD69100C-GGGG
click to zoom

PD69100C-GGGG Details

  • Manufacturer Part Number:

    PD69100C-GGGG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-36

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Microchip Technology Inc

  • JESD-30 Code:

    S-PQCC-N36

  • Length:

    6 mm

  • Number of Terminals:

    36

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    PSE CONTROLLER

PD69100C-GGGG Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's application note (DS50002734A). It's essential to follow the guidelines for proper power supply decoupling, signal routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The PD69100C-GGGG can be configured using the I2C interface to set the power delivery profile. Microchip provides a configuration tool (Power Delivery Configuration Tool) that allows you to generate the necessary I2C commands to configure the device. You can also refer to the device's programming guide (DS50002735A) for more information.
  • The maximum cable length supported by the PD69100C-GGGG depends on the specific application and the type of cable used. As a general guideline, Microchip recommends keeping the cable length as short as possible (less than 1 meter) to minimize signal degradation and ensure reliable operation. For longer cable lengths, you may need to use active cables or repeaters to maintain signal integrity.
  • Yes, the PD69100C-GGGG can be configured to support non-standard power delivery profiles using the I2C interface. However, you may need to consult with Microchip's technical support team to ensure that the custom profile is compatible with the device and meets the necessary safety and regulatory requirements.
  • Microchip provides a troubleshooting guide (DS50002736A) that covers common issues and debugging techniques for the PD69100C-GGGG. You can also use the device's built-in diagnostic features, such as the fault monitoring and reporting capabilities, to identify and isolate problems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PD69100C-GGGG Overview

Use the download button to access the PD69100C-GGGG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PD691, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
