For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a dedicated power plane, and ensure a minimum of 2 oz copper thickness. Thermal management is crucial; use a heat sink with a thermal interface material and ensure good airflow around the device.
To ensure EMC compliance, follow proper PCB layout guidelines, use a shielded enclosure, and implement filtering and shielding techniques. Additionally, ensure that the device is properly decoupled and bypassed, and that the power supply is well-regulated.
The PD69101ILQ-TR has a high reliability rating, with an MTBF of >100 million hours at 40°C. However, this can vary depending on the application, operating conditions, and quality of the PCB assembly.
Yes, the PD69101ILQ-TR is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded.
Store the PD69101ILQ-TR in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the body, not the leads. Use anti-static packaging and follow proper moisture-sensitive device handling procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PD69101ILQ-TR Overview

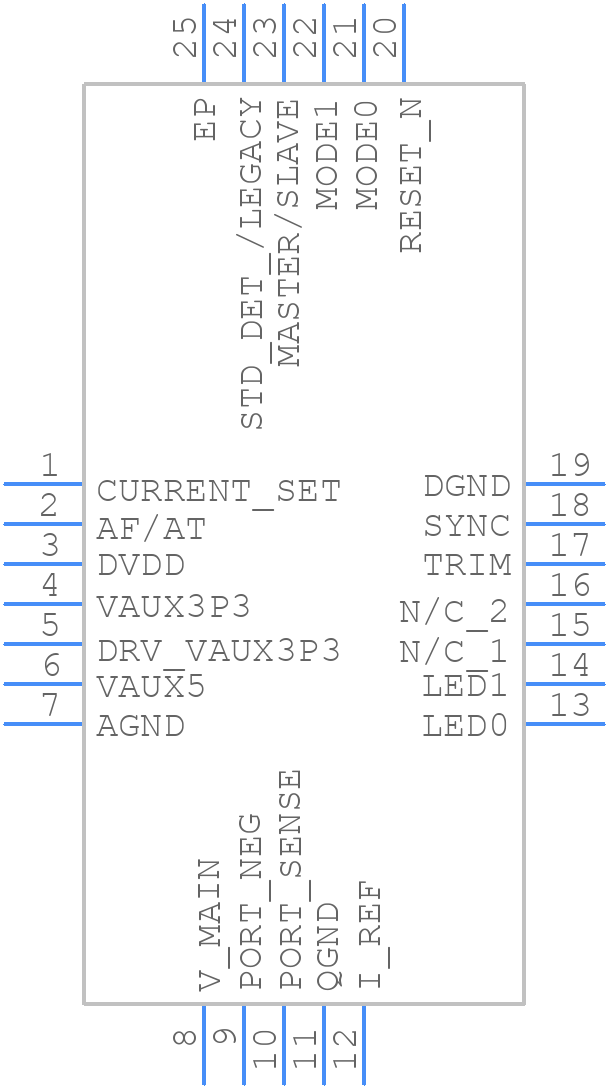

Use the download button to access the PD69101ILQ-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PD691,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
