PD69208MILQ-TR-LE - Microsemi Corporation

PD69208MILQ-TR-LE Details

• Manufacturer Part Number:

  PD69208MILQ-TR-LE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

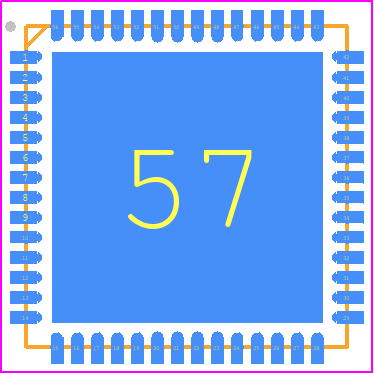

  QFN-56

• HTS Code:

  8542.31.00.30

• Date Of Intro:

  2019-09-24

• Manufacturer:

  Microsemi Corporation (now Microchip)

• JESD-30 Code:

  S-PQCC-N56

• Length:

  8 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  56

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC56,.31SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  57 V

• Supply Voltage-Min:

  32 V

• Supply Voltage-Nom:

  55 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  8 mm

• uPs/uCs/Peripheral ICs Type:

  PSE CONTROLLER
