For optimal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet, ensuring a solid ground plane, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package can also be used to improve heat dissipation.
To ensure EMC and reduce EMI, follow proper PCB layout practices, use shielding, and implement filtering and grounding techniques. Additionally, consider using a metal shield can or a Faraday cage to enclose the device.
The recommended power-up sequence is to apply VCC first, followed by VIO. For power-down, reverse the sequence. Ensure that VCC is always applied before VIO to prevent damage to the device.
Handle the device in an ESD-controlled environment, using wrist straps, anti-static bags, and ESD-safe workbenches. Store the device in its original packaging or an anti-static bag to prevent ESD damage.
The PD70211ILQ-TR meets industry standards for reliability and quality, with a FIT rate of < 10. It is manufactured using a robust process, and Microsemi Corporation provides a warranty and support for the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PD70211ILQ-TR Overview

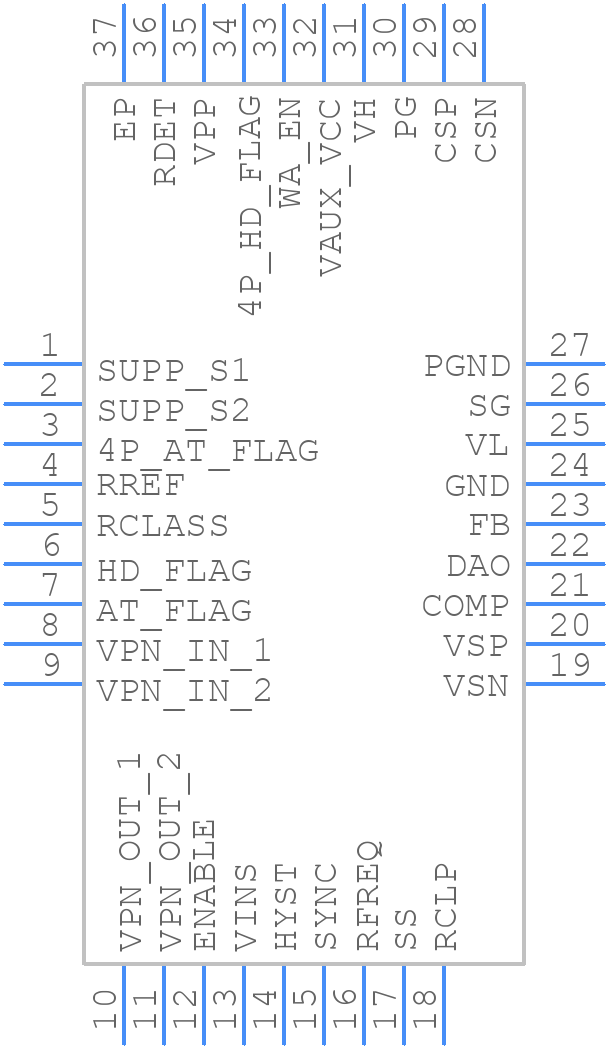

Use the download button to access the PD70211ILQ-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PD702,
or try a keyword search, such as Switching Regulator or Controllers
