Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
To handle the high current rating, ensure that your PCB traces and vias can handle the current density. Use thick copper traces (at least 2 oz) and consider using multiple vias to reduce the current density. Also, ensure that your design meets the thermal requirements specified in the datasheet.
The SRF of PDB12-H4251-102BF is not explicitly stated in the datasheet, but it can be estimated using the inductance and capacitance values. The SRF is typically above 100 MHz for this inductor. Ensure that your design operates below the SRF to avoid unwanted resonances and losses.
The PDB12-H4251-102BF is rated for operation up to 125°C, but derating is required above 85°C. Ensure that your design meets the thermal requirements, and consider using a heat sink or thermal management system if operating in high-temperature environments.
When selecting an inductor, consider factors such as inductance value, current rating, DC resistance, and physical size. Ensure that the inductor meets your application's requirements, and consult Bourns' selection guides and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDB12-H4251-102BF Overview

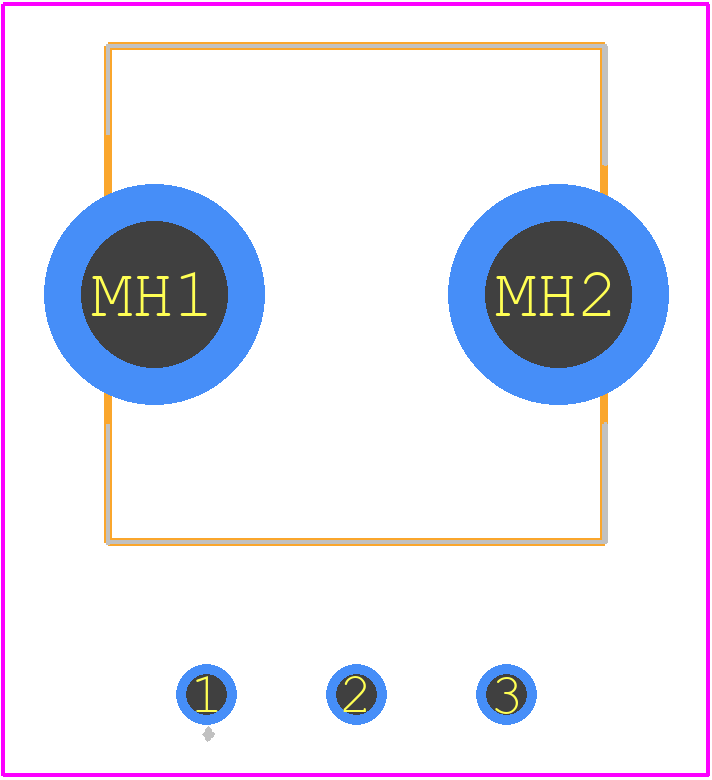

Use the download button to access the PDB12-H4251-102BF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDB12,
or try a keyword search, such as Variable Resistors
