PDF700S120 - Cincon

Description: Switching Power Supplies 700W 90 264VACin 12Vout 58.4A Full Brick

Download PDF700S120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

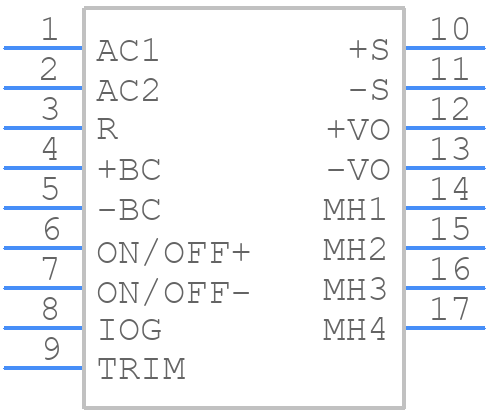

Symbol
PDF700S120 - Cincon - PCB symbol
click to zoom

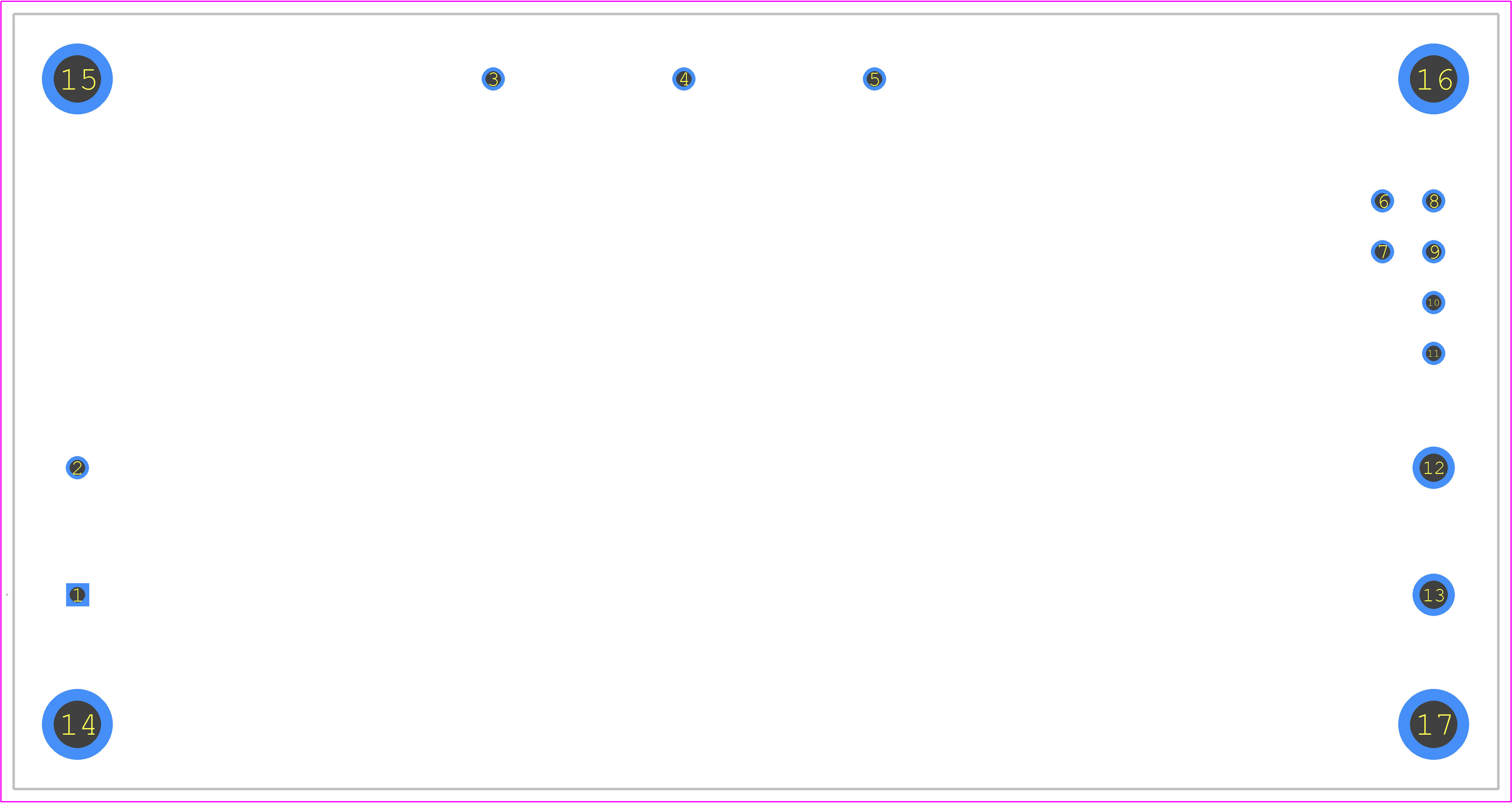

PCB Footprints
PDF700S120 - Cincon PCB footprint - Other - Other - PDF700S120-4
click to zoom
3D Models
PDF700S120 - Cincon - 3D model - Other - PDF700S120-4
click to zoom

PDF700S120 Details

  • Manufacturer Part Number:

    PDF700S120

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FULL BRICK PACKAGE-13

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    AC-DC POWER FACTOR CORRECTION MODULE

  • Approvals:

    CE, C-UL-US, EN, IEC, UKCA, UL

  • Efficiency (Main Output):

    87.5%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    90 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    R-PXMA-P13

  • Length:

    116.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    58.4 A

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,13LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL

  • Ripple Voltage (Main Out):

    0.042 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    700 W

  • Trim/Adjustable Output:

    YES

  • Width:

    61 mm

PDF700S120 Frequently Asked Questions (FAQs)

  • The datasheet provides general guidelines, but Cincon recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern around the device's thermal pad. A minimum of 2 oz copper thickness is recommended for optimal heat dissipation.
  • To ensure reliable startup and shutdown, Cincon recommends a soft-start circuit to limit the inrush current and a shutdown circuit to discharge the output capacitors. The datasheet provides a reference design for a soft-start circuit.
  • The datasheet specifies a maximum output capacitance of 2200uF. Exceeding this value may cause instability or oscillation in the converter. Cincon recommends using a combination of low-ESR capacitors and ceramic capacitors to minimize output ripple and ensure stability.
  • Cincon recommends using a TVS (Transient Voltage Suppressor) diode or a varistor on the input line to protect the converter from voltage transients and surges. The TVS diode should be rated for the maximum expected input voltage and surge energy.
  • Cincon recommends using a slow-blow fuse with a rating of 2-3 times the maximum expected input current. The fuse type should be a UL-rated fuse with a voltage rating of at least 250VAC.
