OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.084 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
700 W
Trim/Adjustable Output:
YES
Width:
61 mm
PDF700S240 Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal management for the PDF700S240 involve placing the device on a multi-layer board with a solid ground plane, using thermal vias to dissipate heat, and ensuring good airflow around the device. A heat sink may also be necessary for high-power applications.
To ensure reliability and long-term stability, it's essential to follow the recommended operating conditions, use a suitable input filter, and implement overvoltage, undervoltage, and overcurrent protection. Additionally, regular maintenance and monitoring of the device's performance can help identify potential issues early on.
Output voltage ripple can be caused by factors such as input voltage noise, switching frequency, and output capacitance. To minimize ripple, use a high-quality input filter, optimize the output capacitance, and consider adding a post-regulator or filter stage. Additionally, ensuring good PCB layout and decoupling can also help reduce ripple.
To troubleshoot common issues, start by verifying the input voltage, output load, and ambient temperature. Check the device's pinout and connections for any errors or damage. Use an oscilloscope to measure the output voltage and current, and consult the datasheet for troubleshooting guidelines specific to the PDF700S240.
When working with the PDF700S240, ensure proper handling and storage to prevent damage from electrostatic discharge or physical stress. Use protective equipment such as safety glasses and a wrist strap, and follow proper soldering and desoldering techniques. Additionally, ensure the device is operated within its recommended specifications and follow proper shutdown procedures to avoid electrical shock or injury.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDF700S240 Overview

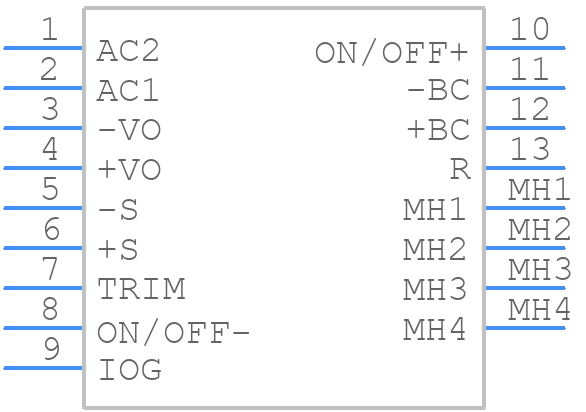

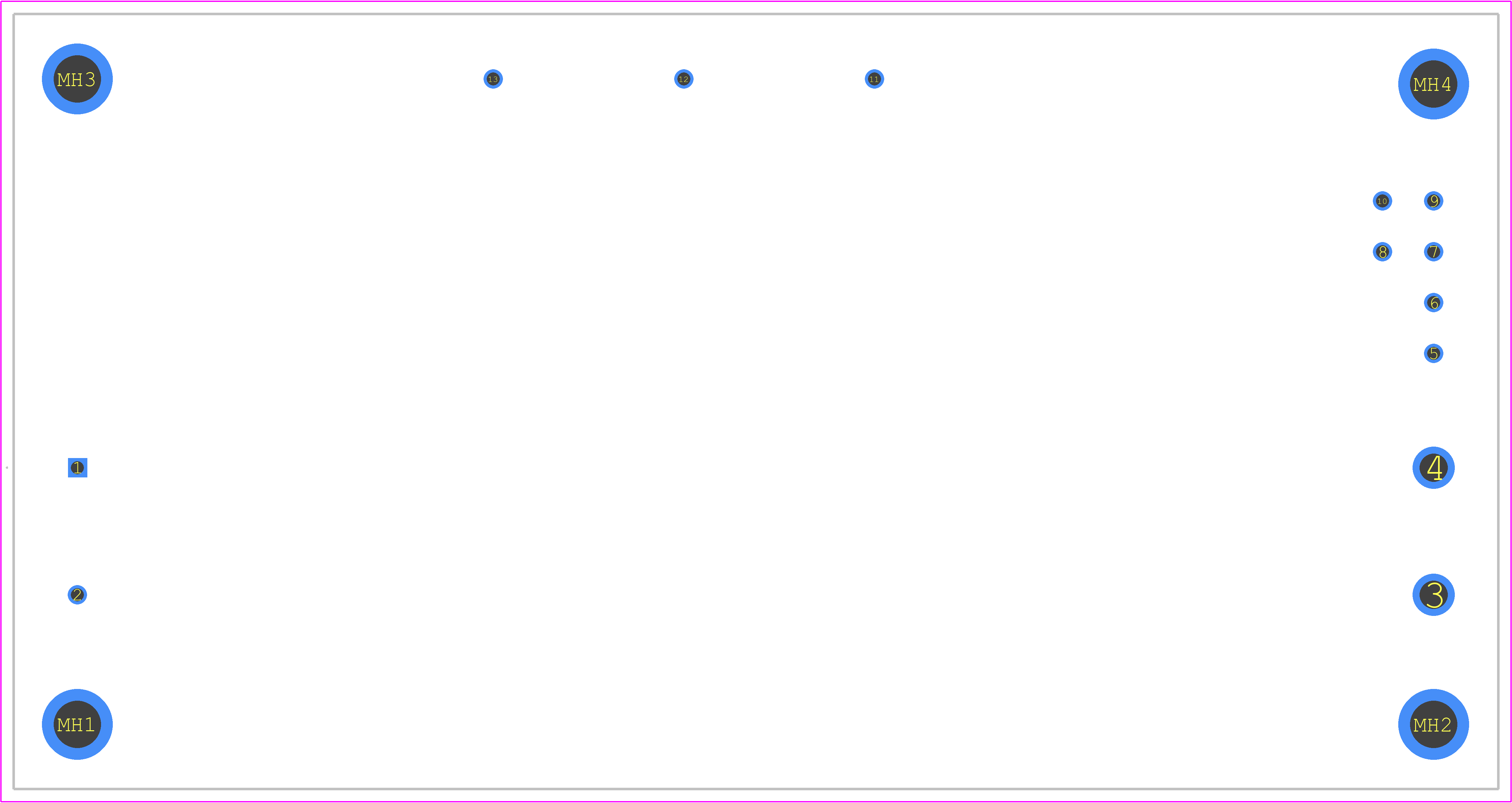

Use the download button to access the PDF700S240 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDF70,
or try a keyword search, such as Power Supply Modules
