OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.169 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
700 W
Trim/Adjustable Output:
YES
Width:
61 mm
PDF700S480 Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal management for optimal performance can be found in the Cincon Electronics Corporation's application note AN-001, which provides guidelines for PCB design, component placement, and thermal management to ensure reliable operation and minimize thermal-related issues.
The PDF700S480 is designed to meet various safety and regulatory standards, including UL, CE, and RoHS. To ensure compliance, engineers should follow the recommended layout and design guidelines, and also consider additional components and testing as required by the specific standard.
The maximum allowable capacitance for the output filter capacitors is not explicitly stated in the datasheet, but it is generally recommended to keep the total output capacitance below 10uF to ensure stability and prevent oscillations. However, it's best to consult with Cincon Electronics Corporation's application engineers for specific guidance on output capacitance selection.
Cincon Electronics Corporation provides a troubleshooting guide in their application note AN-002, which covers common issues and their possible causes, as well as recommended solutions and debugging techniques. Engineers can also contact Cincon's technical support team for further assistance.
Yes, the PDF700S480 requires proper EMI filtering and shielding to meet regulatory standards and ensure reliable operation. Cincon Electronics Corporation recommends following the guidelines in their application note AN-003, which provides detailed information on EMI filtering and shielding requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDF700S480 Overview

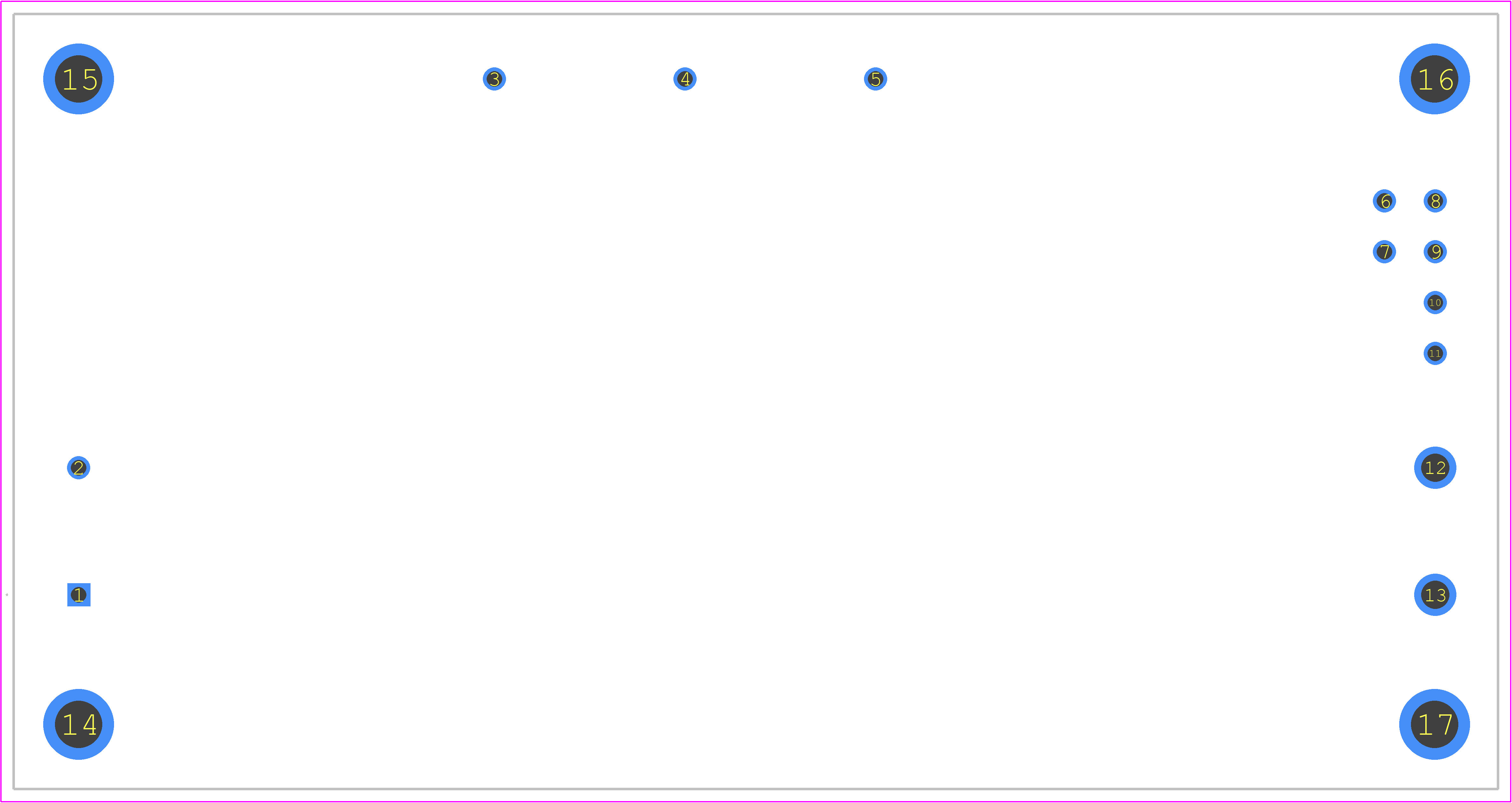

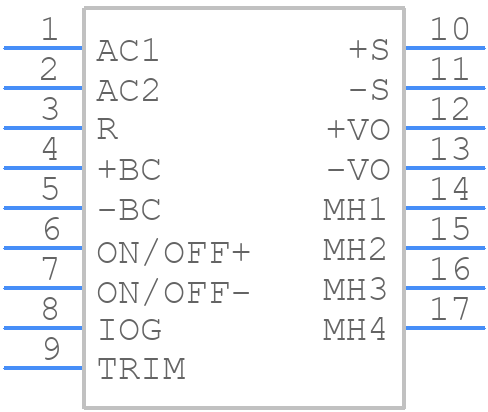

Use the download button to access the PDF700S480 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDF70,
or try a keyword search, such as Power Supply Modules
