PDQ15-Q24-S12-D - CUI Inc.

Description: Isolated DC/DC Converters - Through Hole 15W 9-36Vin 12Vout 1250mA Iso Reg DIP

Download PDQ15-Q24-S12-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

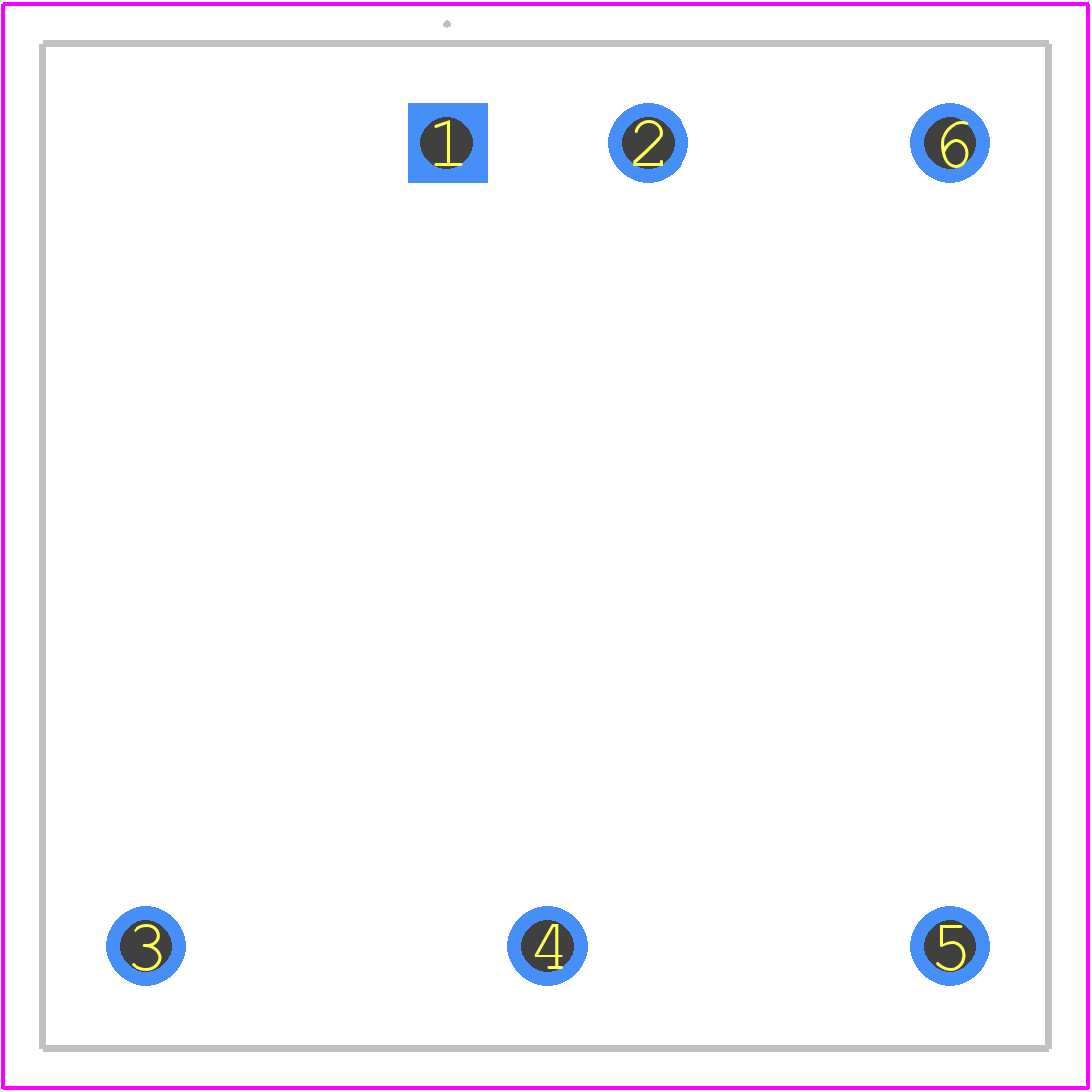

PDQ15-Q24-S12-D - CUI Inc. PCB footprint - Other - Other - 6-DIP Module_2024-5
click to zoom
3D Models
PDQ15-Q24-S12-D - CUI Inc.  - 3D model - Other - 6-DIP Module_2024-5
click to zoom

PDQ15-Q24-S12-D Details

  • Manufacturer Part Number:

    PDQ15-Q24-S12-D

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDIP-P6

  • JESD-609 Code:

    e3

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    68 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Shape:

    SQUARE

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN OVER NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

PDQ15-Q24-S12-D Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other layers of the PCB.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device.
  • The maximum allowable voltage derating for this device is 80% of the maximum rated voltage, as specified in the datasheet.
  • While the device is designed to operate in a variety of environments, it's recommended to take precautions when using it in high-humidity environments. Consider applying a conformal coating to protect the device from moisture.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to 30°C, and the recommended storage humidity is 60% RH or less.
