PDQ15-Q48-S5-D - CUI Inc.

Description: Isolated DC/DC Converters 15W 18-75Vin 5Vout 3A Iso Reg DIP

Download PDQ15-Q48-S5-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PDQ15-Q48-S5-D - CUI Inc. - PCB symbol
click to zoom
PCB Footprints

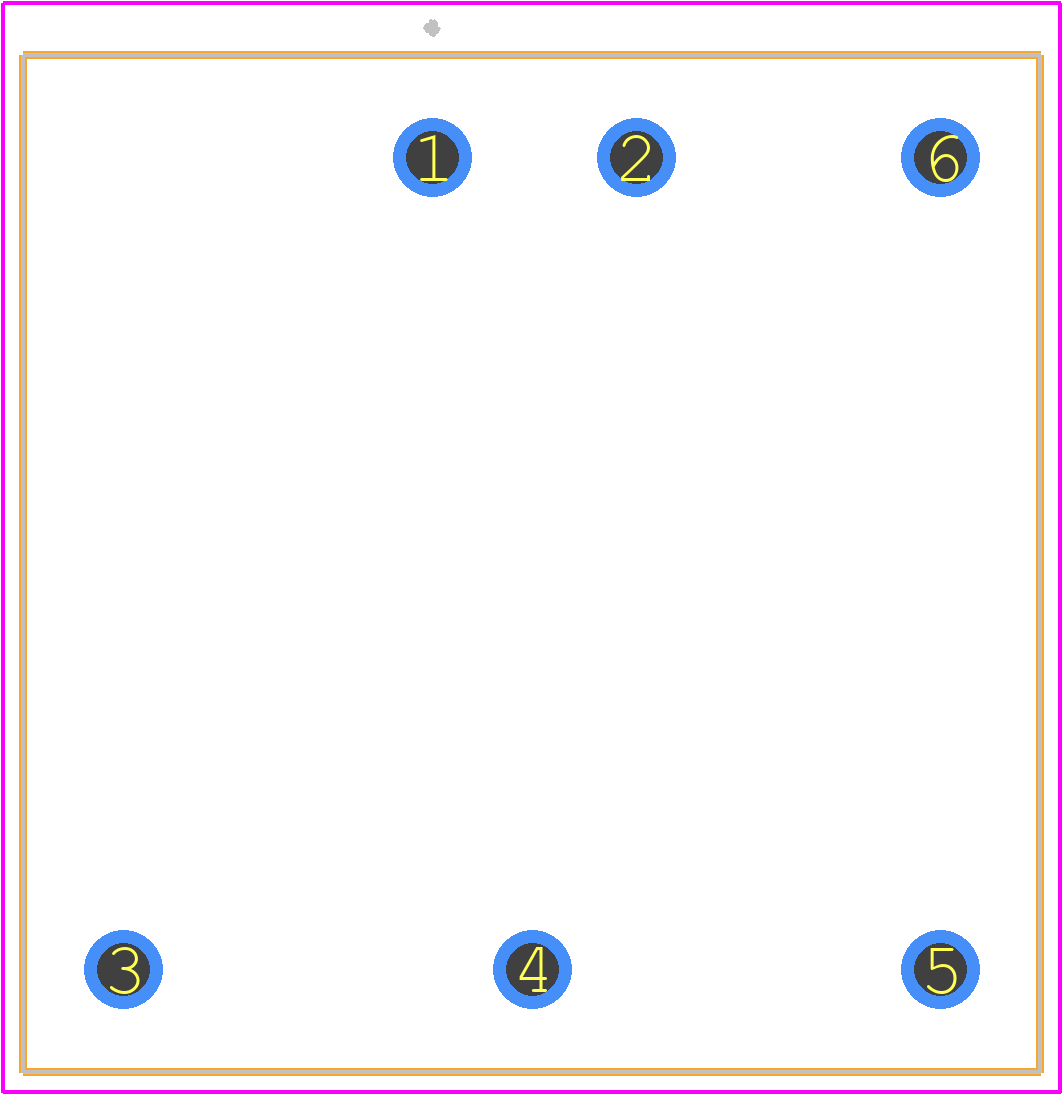

PDQ15-Q48-S5-D - CUI Inc. PCB footprint - Other - Other - PDQ15-Q48-S5-D-2
click to zoom
3D Models
PDQ15-Q48-S5-D - CUI Inc. - 3D model - Other - PDQ15-Q48-S5-D-2
click to zoom

PDQ15-Q48-S5-D Details

  • Manufacturer Part Number:

    PDQ15-Q48-S5-D

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    S-XDIP-P6

  • JESD-609 Code:

    e3

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    68 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Shape:

    SQUARE

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN OVER NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

PDQ15-Q48-S5-D Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other side of the board.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device.
  • The maximum allowable voltage deviation for the input voltage is ±10% of the nominal input voltage. Exceeding this deviation may affect the device's performance and reliability.
  • Yes, the PDQ15-Q48-S5-D is designed to withstand vibrations up to 10G. However, it's recommended to follow proper mounting and screw torque procedures to ensure the device remains securely fastened.
  • A recommended input capacitor value is 10uF to 22uF, with a voltage rating of 50V or higher. A low-ESR capacitor type, such as X5R or X7R, is recommended for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PDQ15-Q48-S5-D Overview

Use the download button to access the PDQ15-Q48-S5-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDQ15, or try a keyword search, such as Power Supply Modules
