A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the module, and to use multiple vias to dissipate heat to the other side of the board. Additionally, keeping the PCB area around the module clear of other components can help improve airflow and heat dissipation.
To ensure reliable start-up of the module, make sure to follow the recommended start-up sequence outlined in the datasheet. This typically involves applying the input voltage before enabling the module, and ensuring that the input voltage is stable and within the recommended range before enabling the output.
Operating the module outside of the recommended temperature range can lead to reduced efficiency, reliability, and lifespan. It can also cause the module to shut down or malfunction. It's essential to ensure that the module operates within the recommended temperature range to ensure optimal performance and reliability.
To troubleshoot issues with the module's output voltage, first check the input voltage and ensure it's within the recommended range. Then, verify that the module is properly configured and that the output voltage is set correctly. If the issue persists, check for any signs of overheating, and ensure that the module is properly cooled. If none of these steps resolve the issue, contact the manufacturer's technical support for further assistance.
The PDQE30-Q48-S12-D module is designed to meet CISPR 22 Class B emissions standards. To ensure compliance with EMI/EMC regulations, it's essential to follow proper PCB layout and design practices, such as using a metal enclosure, keeping cables and wires short, and using EMI filters or shielding if necessary. Additionally, ensure that the module is installed and configured according to the manufacturer's recommendations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDQE30-Q48-S12-D Overview

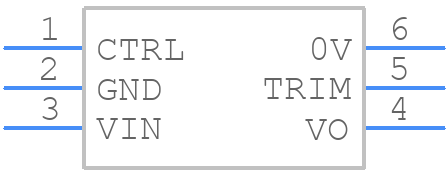

Use the download button to access the PDQE30-Q48-S12-D schematic symbol, PCB footprint, and 3D model.
