Texas Instruments provides a recommended PCB layout in the application note SLVAUH7, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The PDRV8705SRHBQ1 datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, Texas Instruments offers a web-based tool, WEBENCH, which can help engineers select the optimal external components for their specific application.
The PDRV8705SRHBQ1 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) is 150°C. Engineers should ensure that the device is operated within the recommended temperature range to ensure reliability and prevent thermal shutdown.
Texas Instruments provides a troubleshooting guide in the application note SLVAUH8, which includes steps to identify and resolve common issues with the PDRV8705SRHBQ1, including overcurrent and overvoltage protection. Engineers can also use the device's built-in diagnostic features, such as fault flags and current sense outputs, to help identify the root cause of the issue.
The PDRV8705SRHBQ1 is rated for a maximum input voltage of 60V, but it can be used in high-voltage applications with the use of external voltage regulators or DC-DC converters. However, engineers should ensure that the device is operated within its recommended voltage range and that proper voltage regulation and protection are implemented to prevent damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDRV8705SRHBQ1 Overview

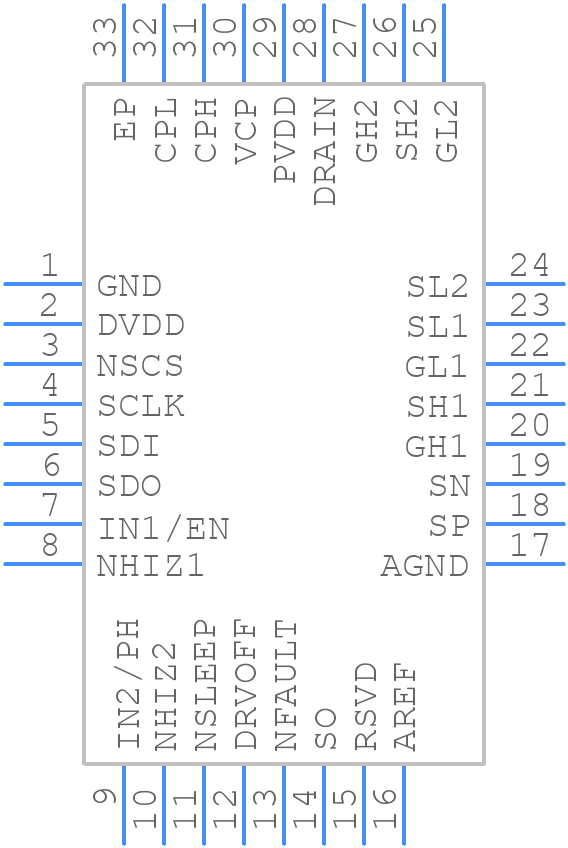

Use the download button to access the PDRV8705SRHBQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDRV8,
or try a keyword search, such as MOSFET Drivers
