PDS1-S5-S3-M-TR - CUI Inc.

Description: Isolated DC/DC Converters Isolated Board Mount DC-DC Cnvrt

Download PDS1-S5-S3-M-TR Model

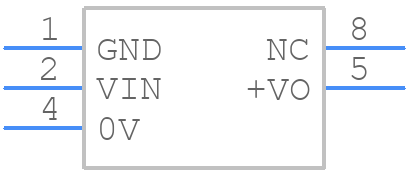

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

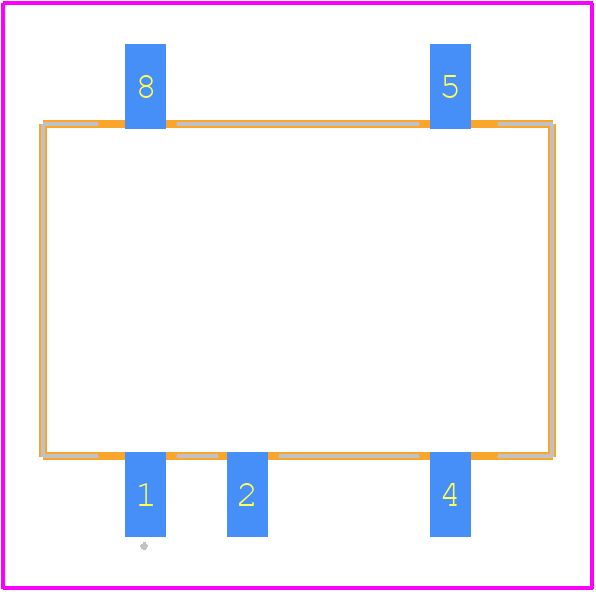

PCB Footprints
PDS1-S5-S3-M-TR - CUI Inc. PCB footprint - Other - Other - PDS1-M
click to zoom
3D Models
PDS1-S5-S3-M-TR - CUI Inc.  - 3D model - Other - PDS1-M
click to zoom

PDS1-S5-S3-M-TR Details

  • Manufacturer Part Number:

    PDS1-S5-S3-M-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    8/5

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Approvals:

    UL

  • Efficiency (Main Output):

    72%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDMA-G5

  • Length:

    12.7 mm

  • Line Regulation-Max:

    1.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.303 A

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    GWDIP5/8,.48

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    245

  • Ripple Voltage (Main Out):

    0.021 Vrms

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    8.3 mm

PDS1-S5-S3-M-TR Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other layers of the PCB.
  • To ensure proper soldering, use a soldering iron with a temperature of 250-270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the component.
  • The maximum allowable voltage derating for this device is 80% of the maximum rated voltage, as specified in the datasheet. Exceeding this derating may affect the device's reliability and lifespan.
  • While the device is designed to operate in a variety of environments, it's recommended to take precautions when using it in high-humidity environments. Consider applying a conformal coating to protect the device from moisture, and ensure the PCB is designed with moisture-resistant materials.
  • Store the device in its original packaging, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or electrical components. Use an anti-static wrist strap or mat when handling the device to prevent electrostatic discharge.
