ROHM recommends a PCB layout with a solid ground plane, short and wide traces for power lines, and a decoupling capacitor (e.g., 100nF) close to the device. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure reliability, follow the recommended operating temperature range (up to 125°C), use a suitable thermal design (e.g., heat sink, thermal pad), and consider derating the device's power dissipation according to the ambient temperature.
ROHM recommends a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 1μF to 10μF, depending on the input voltage and output current requirements. The capacitor should be placed close to the device's input pins.
To troubleshoot, check the input voltage, output current, and PCB layout. Verify that the device is operated within the recommended specifications, and ensure proper thermal design and decoupling. Use an oscilloscope to monitor the output voltage and current waveforms.
Yes, the PDZVTFTR6.8B is compatible with lead-free soldering processes, such as SnAgCu (SAC) or SnCu. ROHM recommends following the recommended soldering conditions and profiles to ensure reliable assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDZVTFTR6.8B Overview

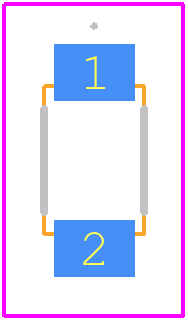

Use the download button to access the PDZVTFTR6.8B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDZVT,
or try a keyword search, such as Zener Diodes
