A symmetrical and compact layout with minimal trace lengths is recommended. Use a 4-layer PCB with a solid ground plane and a separate power plane. Follow the recommended land pattern in the datasheet, and ensure the RF traces are 50-ohm impedance-matched.
Use a low-impedance control signal (e.g., 10 kΩ) and ensure the control voltage is within the recommended range (1.8V to 3.3V). Minimize the distance between the control signal and the switch. Use a 0.1 μF decoupling capacitor near the VCC pin.
While the datasheet specifies operation up to 6 GHz, the PE42423B-Z can be used up to 8 GHz with some degradation in performance. However, it's essential to evaluate the switch's performance in your specific application and consider factors like signal amplitude, frequency, and temperature.
The PE42423B-Z has integrated ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded. Avoid touching the device pins or exposed internal components.
Store the PE42423B-Z in its original packaging or an anti-static bag. Avoid exposing the device to temperatures above 150°C or humidity above 80%. Handle the device by the body, not the pins, and avoid bending or flexing the leads.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE42423B-Z Overview

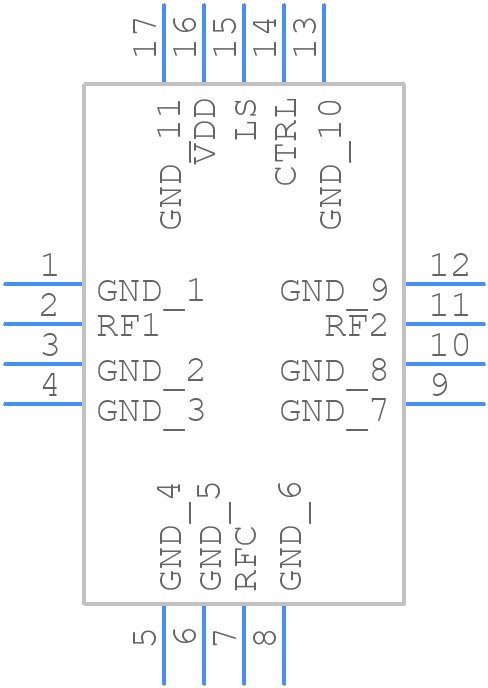

Use the download button to access the PE42423B-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE424,
or try a keyword search, such as Other Telecom ICs
