A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Use a voltage regulator or a voltage reference to maintain a stable voltage.
The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or lower. Impedance matching is crucial for optimal performance.
Use a low-noise power supply, add decoupling capacitors, and use a shielded enclosure to reduce electromagnetic interference (EMI). Also, consider using a low-pass filter or a band-pass filter to reduce noise.
The maximum operating temperature range for the PE4250MLI-Z is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE4250MLI-Z Overview

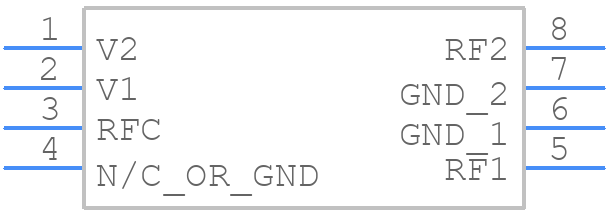

Use the download button to access the PE4250MLI-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE425,
or try a keyword search, such as RF/Microwave Switches
