A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
The PE42512A-X requires a 3.3V power supply and a 1.8V bias voltage. Ensure the bias voltage is stable and within the recommended range to maintain optimal performance.
The PE42512A-X can operate up to 6 GHz, but the maximum operating frequency may vary depending on the specific application and PCB layout.
The PE42512A-X has a maximum junction temperature of 150°C. Ensure good airflow and consider using a heat sink or thermal pad to maintain a safe operating temperature.
The PE42512A-X has built-in ESD protection, but additional external protection may be necessary depending on the application. Follow standard ESD protection guidelines for high-frequency devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE42512A-X Overview

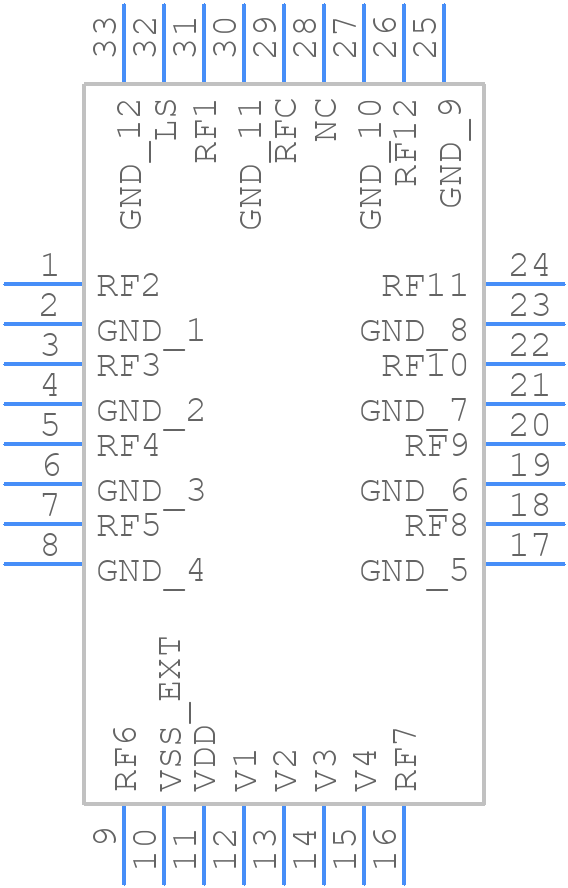

Use the download button to access the PE42512A-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE425,
or try a keyword search, such as RF/Microwave Switches
