A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance-controlled lines. Avoid vias and layer transitions near the RF pins.
The PE4251MLI-Z requires a 3.3V power supply and a 1.8V bias voltage. Ensure the bias voltage is stable and noise-free, and use a low-dropout regulator (LDO) to minimize noise and ripple.
The PE4251MLI-Z is designed to operate up to 6 GHz, but the maximum operating frequency depends on the specific application and PCB layout. Consult the datasheet and application notes for more information.
The PE4251MLI-Z has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink if necessary.
The PE4251MLI-Z has an integrated ESD protection circuit, but additional external protection may be necessary depending on the application. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE4251MLI-Z Overview

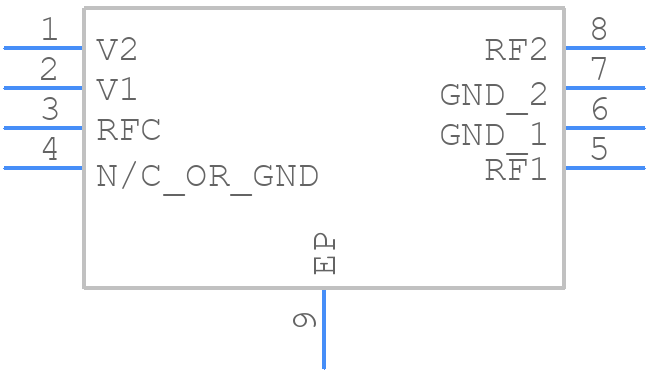

Use the download button to access the PE4251MLI-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE425,
or try a keyword search, such as RF/Microwave Switches
