PE42521C-Z - Peregrine Semiconductor

Description: RF Switch ICs SPDT, High Iso, High Power, Fast switching, Absorptive, 50? Instrumentation Switch

Download PE42521C-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

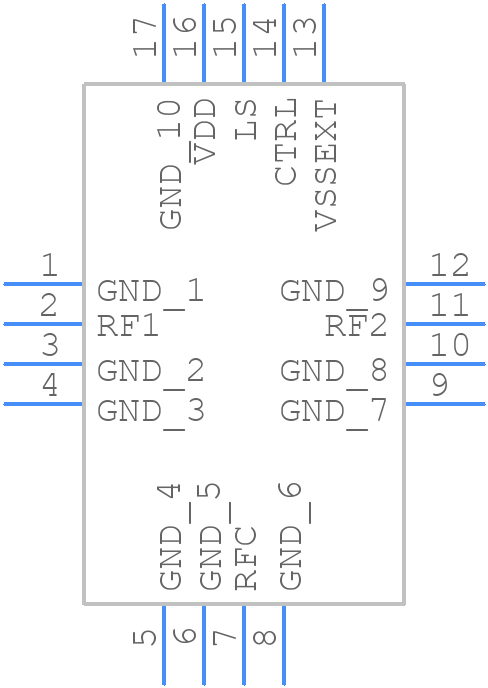

PE42521C-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42521C-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFP16X3X3
click to zoom
3D Models
PE42521C-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - QFP16X3X3
click to zoom

PE42521C-Z Details

  • Manufacturer Part Number:

    PE42521C-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    pSemi

  • YTEOL:

    8.1

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.02 dBm

  • Insertion Loss-Max:

    2.6 dB

  • Operating Frequency-Max:

    13000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • VSWR-Max:

    1.15
