PE42540F-Z - Peregrine Semiconductor

Description: RF Switch ICs SP4T, High Iso, Absorptive, 50? Instrumentation Switch

Download PE42540F-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

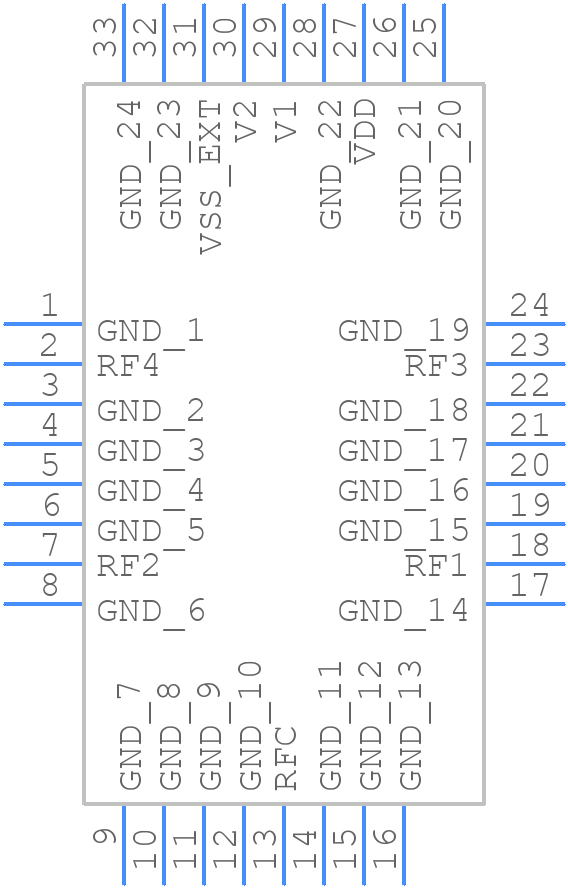

PE42540F-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42540F-Z - Peregrine Semiconductor PCB footprint - Other - Other - PE42540F-Z-8
click to zoom
3D Models
PE42540F-Z - Peregrine Semiconductor - 3D model - Other - PE42540F-Z-8
click to zoom

PE42540F-Z Details

  • Manufacturer Part Number:

    PE42540F-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Date Of Intro:

    2018-09-11

  • Manufacturer:

    pSemi

  • YTEOL:

    6.1

  • 1dB Compression Point:

    33 dBm

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.6 dB

  • Isolation-Min:

    21 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • On Time-Nom:

    5 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    0.00001 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    0.16 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1

PE42540F-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation. Use thermal tape or a heat sink for high-power applications.
  • Use the lowest possible supply voltage, enable the low-power mode, and optimize the output impedance to minimize power consumption. Additionally, consider using a DC-DC converter to reduce power losses.
  • Use a vector network analyzer (VNA) or a spectrum analyzer to measure the device's frequency response, gain, and noise figure. Ensure proper calibration and use of high-quality cables and connectors.
  • Use a metal enclosure, ensure proper grounding, and add EMI filters or shielding to the PCB. Follow good EMC design practices, such as keeping sensitive components away from the device.
  • The PE42540F-Z has a typical MTBF of 100 million hours. Follow proper storage, handling, and operating conditions to ensure reliability. Consult the datasheet and manufacturer's guidelines for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE42540F-Z Overview

Use the download button to access the PE42540F-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE425, or try a keyword search, such as RF/Microwave Switches
