PE42562A-X - Peregrine Semiconductor

Description: RF Switch ICs SP6T, Absorptive, 50? Instrumentation Switch

Download PE42562A-X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

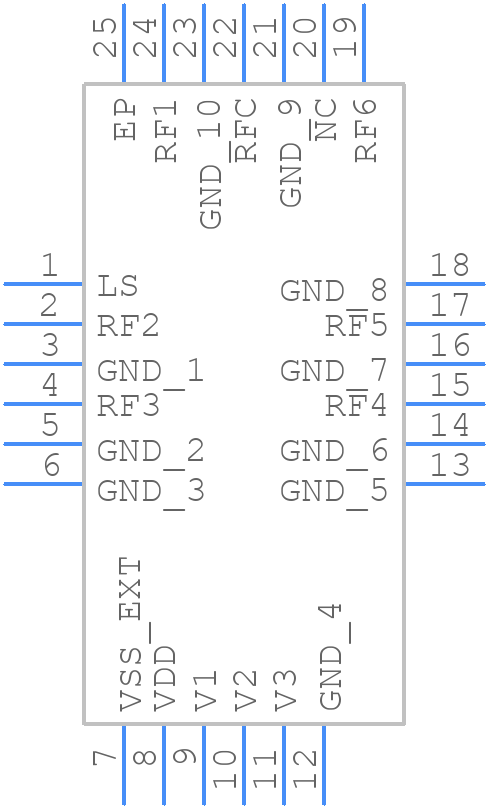

PE42562A-X - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42562A-X - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-lead 4x4mm QFN
click to zoom
3D Models
PE42562A-X - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 24-lead 4x4mm QFN
click to zoom

PE42562A-X Details

  • Manufacturer Part Number:

    PE42562A-X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Date Of Intro:

    2017-03-06

  • Manufacturer:

    pSemi

  • YTEOL:

    6

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    2.8 dB

  • Isolation-Min:

    27 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.21 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Packing Method:

    TR

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SP6T

  • Screening Level:

    MIL-STD-883

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    UltraCMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.11

PE42562A-X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
  • The PE42562A-X requires a 3.3V power supply. Ensure the voltage regulator is stable and can provide enough current. Add decoupling capacitors close to the device to reduce noise and ensure a clean power supply.
  • The PE42562A-X can operate up to 6 GHz, but the optimal frequency range is between 2.4 GHz and 5.8 GHz. Above 5.8 GHz, the device's performance may degrade.
  • The PE42562A-X has a built-in antenna switch. Use the SPI interface to configure the device for different antenna configurations. Refer to the datasheet for the specific register settings and antenna configuration options.
  • The typical current consumption of the PE42562A-X is around 350 mA in transmit mode and 150 mA in receive mode. However, this can vary depending on the specific application and operating conditions.
