PE42641MLBD-Z - Peregrine Semiconductor

Description: IC RF SWITCH SP4T 50 OHM 16QFN

Download PE42641MLBD-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

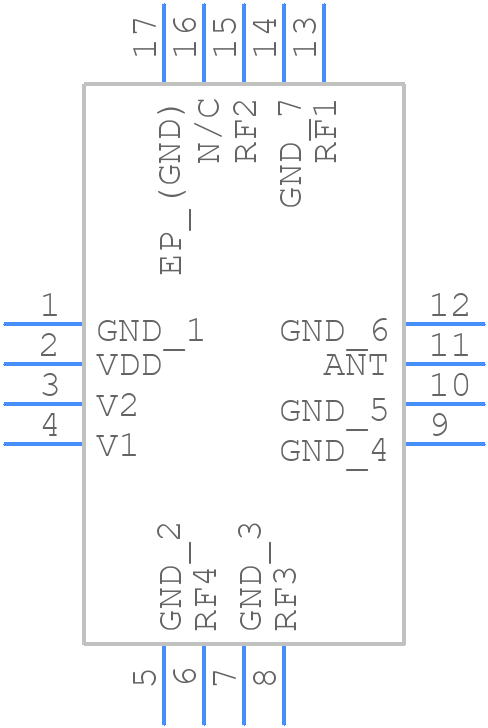

Symbol
PE42641MLBD-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42641MLBD-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead 3 x 3 x 0.75mm QFN
click to zoom
3D Models
PE42641MLBD-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 16-Lead 3 x 3 x 0.75mm QFN
click to zoom

PE42641MLBD-Z Details

  • Manufacturer Part Number:

    PE42641MLBD-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    pSemi

  • YTEOL:

    5.9

  • Additional Feature:

    CMOS COMPATIBLE, HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36 dBm

  • Insertion Loss-Max:

    0.75 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    3

PE42641MLBD-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Also, ensure the bias resistors (RBIAS and RBIAS2) are correctly sized and connected.
  • The maximum operating frequency of the PE42641MLBD-Z is 6 GHz. However, the actual operating frequency may vary depending on the specific application and PCB layout.
  • Check the PCB layout for any signal integrity issues, ensure proper biasing and power supply connections, and verify the input and output impedance matching. Also, check for any signs of overheating or physical damage to the device.
  • The PE42641MLBD-Z is rated for operation up to 85°C. However, it's recommended to derate the device's performance and consider thermal management techniques, such as heat sinks or thermal pads, for high-temperature applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE42641MLBD-Z Overview

Use the download button to access the PE42641MLBD-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE426, or try a keyword search, such as RF/Microwave Switches
