PE42823A-X - Peregrine Semiconductor

Description: PE42823 SPDT RF switch

Download PE42823A-X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

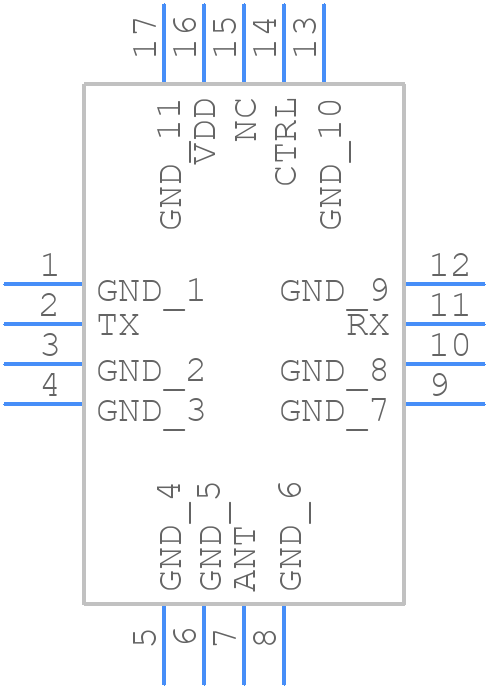

PE42823A-X - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42823A-X - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-lead 3 × 3 ×0.75 mm QFN
click to zoom
3D Models
PE42823A-X - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 16-lead 3 × 3 ×0.75 mm QFN
click to zoom

PE42823A-X Details

  • Manufacturer Part Number:

    PE42823A-X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Date Of Intro:

    2017-05-26

  • Manufacturer:

    pSemi

  • YTEOL:

    7.1

  • 1dB Compression Point:

    43 dBm

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    42 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    22 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.84 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    2.5/5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    UltraCMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.13

PE42823A-X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Use a pi-network topology with a series inductor and shunt capacitors. Optimize component values using simulation tools or empirical methods to achieve a return loss of < -15 dB.
  • The device is rated for operation from -40°C to 85°C. However, for reliable operation, it's recommended to keep the junction temperature below 125°C to prevent thermal throttling.
  • Use a shielded enclosure, ensure proper grounding, and follow good PCB layout practices. Additionally, consider adding EMI filters or shielding components to minimize radiation.
  • Power up the device in the following sequence: VCC, then VDD, and finally enable the input signal. Ensure a monotonic power-up sequence to prevent latch-up or damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE42823A-X Overview

Use the download button to access the PE42823A-X schematic symbol, PCB footprint, and 3D model.
